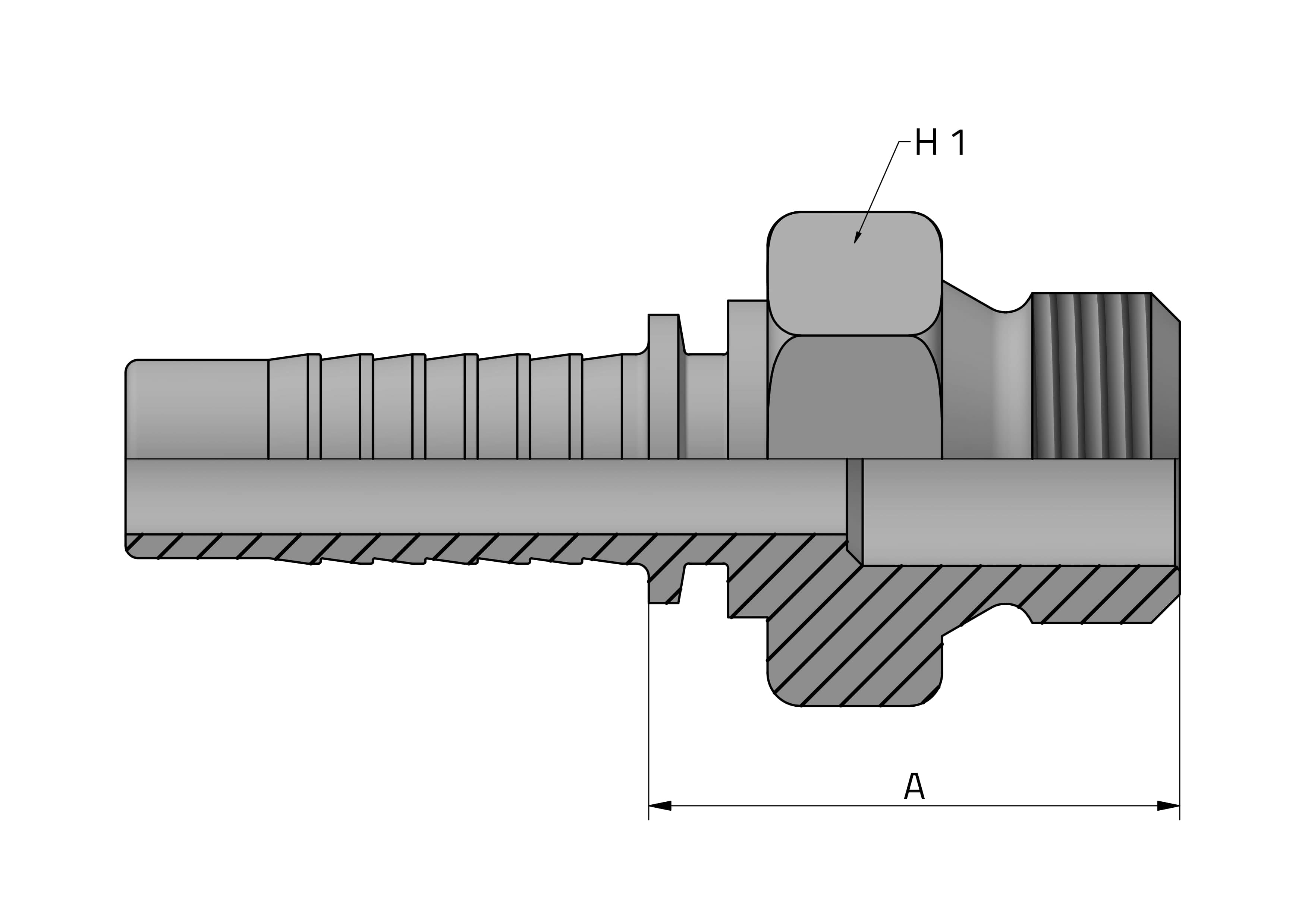

WHITWORTH CO2 MALE
MASCHIO CO2 FILETTO WHITWORTH
Type: Standard
Connector gender F1: Male
Thread F1: WHITWORTH
Shape: Straight
Dimension table - Press fittings
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code | D.N. | Hose size mm | Hose size inch | T mm | T/1 inch | A mm | H1 mm | Note |
|---|---|---|---|---|---|---|---|---|
| MW0621.7 | 6 | 9,5 | 3/8 | 21,7W | 14 | 27,5 | 24 | WHITWORTH |
| MW0821.7 | 8 | 12,5 | 1/2 | 21,7W | 14 | 28 | 24 | WHITWORTH |
