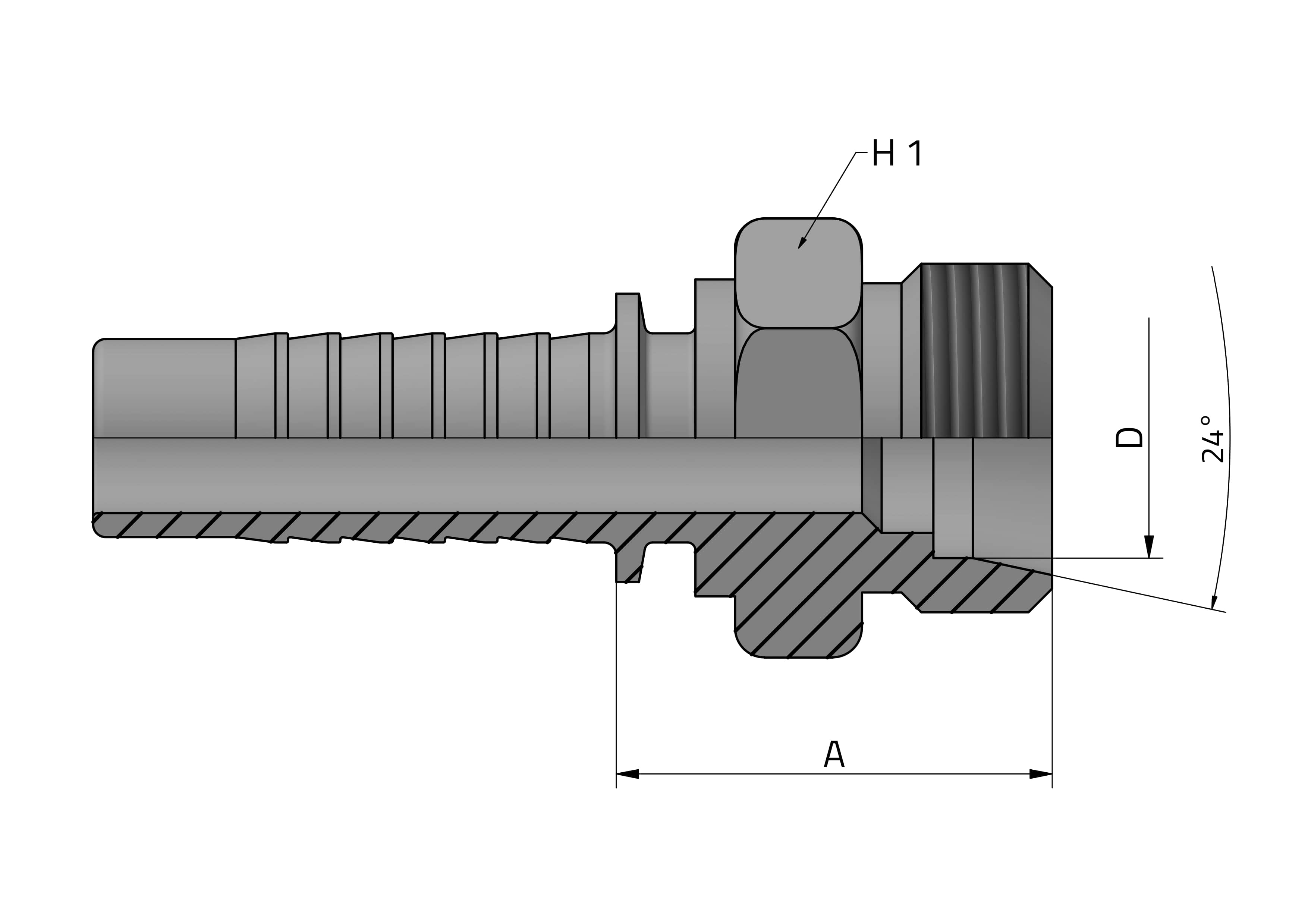

METRIC MALE 24° CONE - L TYPE

METRIC MALE 24° CONE - L TYPE

MASCHIO METRICO 24° DKOL

Type: Standard

Connector gender F1: Male

Thread F1: DIN

Shape: Straight

Dimension table - Press fittings

Consult the table and sort the contents by clicking on the arrows icon in the first column.
Code D.N. Hose size mm Hose size inch T mm A mm H1 mm PN bar PN psi Note
ME0312L6 3 4,8 3/16 12x1,5 22,5 14 500 7252
ME0314L8 3 4,8 3/16 14x1,5 22,5 15 500 7252
ME0412L6 4 6,4 1/4 12x1,5 23,5 14 500 7252
ME0414L8 4 6,4 1/4 14x1,5 23,5 15 500 7252
ME0416L10 4 6,4 1/4 16x1,5 25,5 17 500 7252
ME0418L12 4 6,4 1/4 18x1,5 26 19 400 5801
ME0514L8 5 7,9 5/16 14x1,5 23,5 15 500 7252
ME0516L10 5 7,9 5/16 16x1,5 25,5 17 500 7252
ME0518L12 5 7,9 5/16 18x1,5 26 19 400 5801
ME0614L8 6 9,5 3/8 14x1,5 24,5 17 500 7252
ME0616L10 6 9,5 3/8 16x1,5 25,5 17 500 7252
ME0618L12 6 9,5 3/8 18x1,5 26 19 400 5801
ME0622L15 6 9,5 3/8 22x1,5 27,5 24 400 5801
ME0818L12 8 12,5 1/2 18x1,5 26,5 22 400 5801
ME0822L15 8 12,5 1/2 22x1,5 28 24 400 5801
ME0826L18 8 12,5 1/2 26x1,5 28 27 400 5801
ME0830L22 8 12,5 1/2 30x2 32 32 250 3626
ME1026L18 10 16 5/8 26x1,5 28 27 400 5801
ME1030L22 10 16 5/8 30x2 31,5 32 250 3626
ME1226L18 12 19 3/4 26x1,5 28,7 27 400 5801
ME1230L22 12 19 3/4 30x2 32,2 32 250 3626
ME1236L28 12 19 3/4 36x2 32,7 38 250 3626
ME1630L22 16 25,4 1 30x2 32,5 34 250 3626
ME1636L28 16 25,4 1 36x2 33 38 250 3626
ME2045L35 20 31,8 1 1/4 54x2 38 46 250 3626
ME2452L42 24 38,1 1 1/2 52x2 38 55 250 3626
