FLANGE CODE 62 - 6000 PSI - 45° ELBOW
FLANGIA A 45° SAE J518 6000 PSI INTERA
Type: Standard
Connector gender F1: Flange
Thread F1: None
Shape: 45° elbow
Without o-ring / senza o-ring

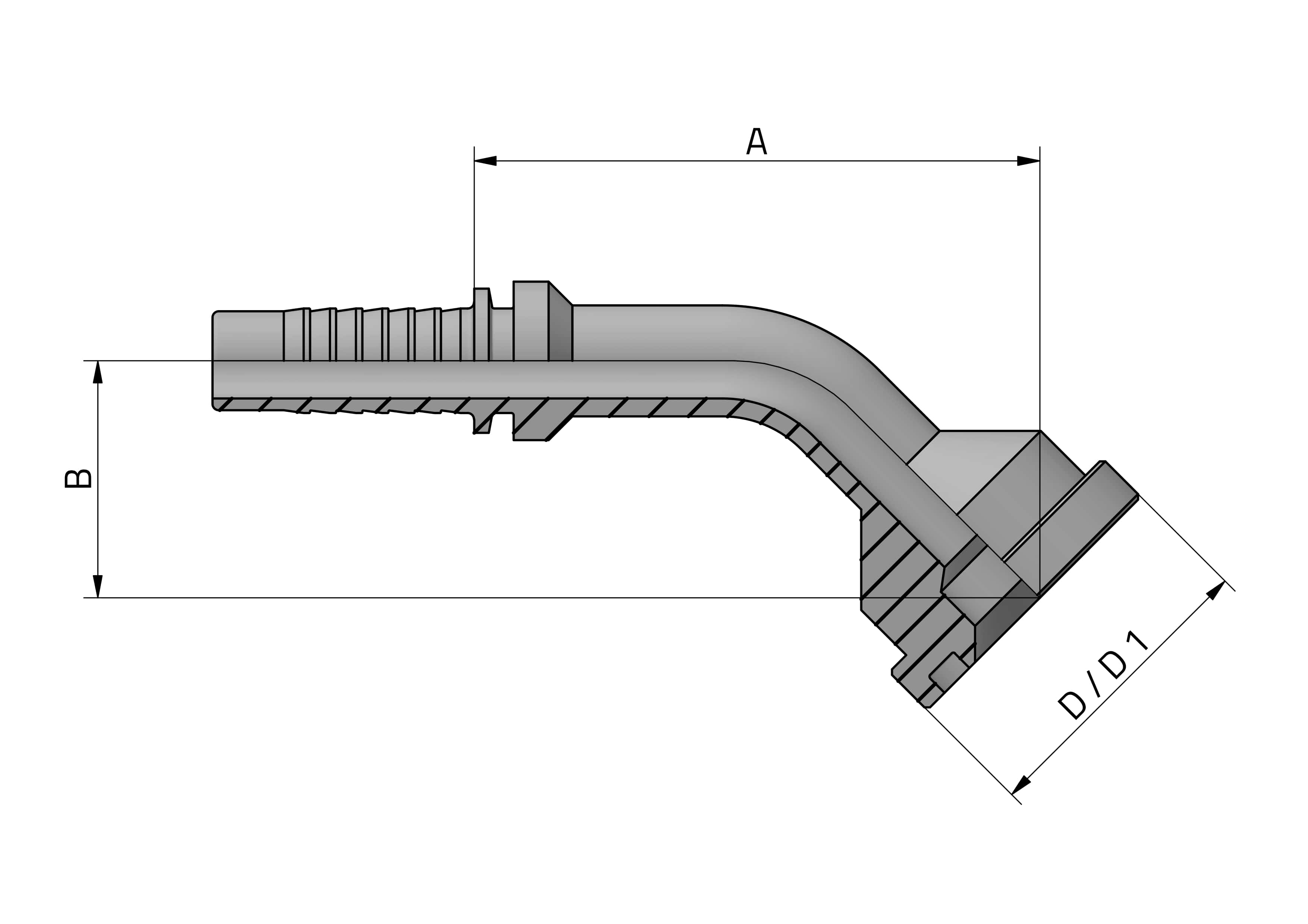

Dimension table - Press fittings
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code | D.N. | Hose size mm | Hose size inch | A mm | B mm | D inch | D1 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|---|---|
| F45P0808I | 8 | 12,5 | 1/2 | 64 | 23 | 1/2 | 31,7 | 415 | 6019 | |
| F45P0812I | 8 | 12,5 | 1/2 | 69 | 28 | 3/4 | 41,3 | 415 | 6019 | |
| F45P1008I | 10 | 16 | 5/8 | 60 | 26 | 1/2 | 31,7 | 350 | 5076 | |
| F45P1012I | 10 | 16 | 5/8 | 66 | 30 | 3/4 | 41,3 | 350 | 5076 | |
| F45P1208I | 12 | 19 | 3/4 | 64 | 28 | 1/2 | 31,7 | 350 | 5076 | |
| F45P1212I | 12 | 19 | 3/4 | 70 | 32 | 3/4 | 41,3 | 350 | 5076 | |
| F45P1216I | 12 | 19 | 3/4 | 74 | 35 | 1 | 47,6 | 350 | 5076 | |
| F45P1612I | 16 | 25,4 | 1 | 86 | 35 | 3/4 | 41,3 | 280 | 4061 | |
| F45P1616I | 16 | 25,4 | 1 | 89 | 32 | 1 | 47,6 | 280 | 4061 | |
| F45P1620I | 16 | 25,4 | 1 | 94 | 36 | 1 1/4 | 54 | 280 | 4061 | |
| F45P2016I | 20 | 31,8 | 1 1/4 | 100 | 36 | 1 | 47,6 | 210 | 3046 | |
| F45P2020I | 20 | 31,8 | 1 1/4 | 104 | 43 | 1 1/4 | 54 | 210 | 3046 | |
| F45P2024I | 20 | 31,8 | 1 1/4 | 107 | 44 | 1 1/2 | 63,5 | 210 | 3046 | |
| F45P2424I | 24 | 38,1 | 1 1/2 | 118 | 41 | 1 1/2 | 63,5 | 185 | 2683 | |
| F45P2432I | 24 | 38,1 | 1 1/2 | 119 | 52 | 2 | 79,4 | 185 | 2683 | |
| F45P3232I | 32 | 50,8 | 2 | 153 | 59 | 2 | 79,4 | 172 | 2495 |
