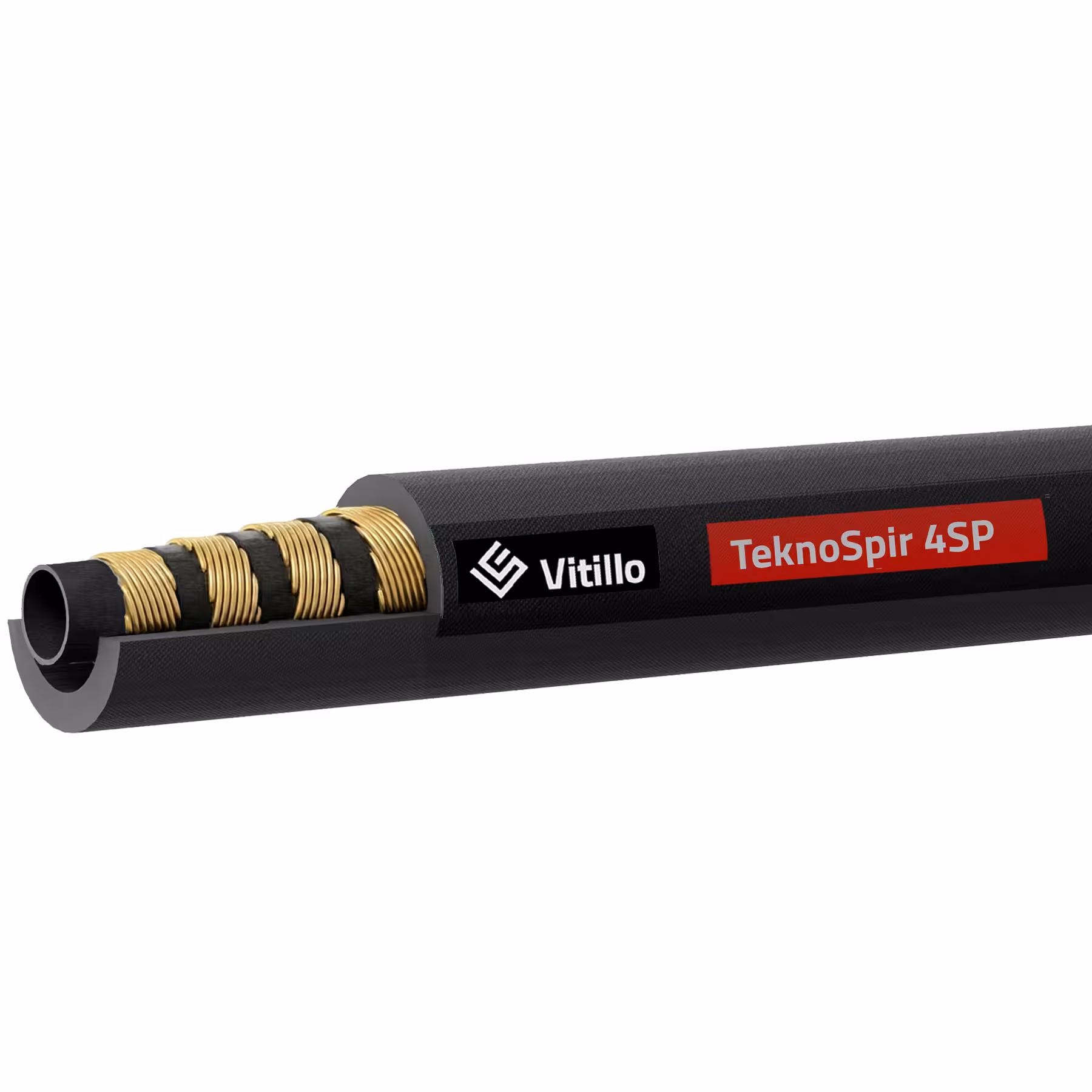

TEKNOSPIR /4SP

TEKNOSPIR /4SP

EN 856 4SP, ISO 3862 4SP

High pressure hydraulic systems

OPERATING TEMPERATURE RANGE:

-40°C/+100°C
(-40°F/+212°F)
with peaks of +125°C (257°F)

TUBE:

Synthetic rubber resistant to oil and biodegradable hydraulic fluids

REINFORCEMENT: 4 high tensile steel spirals

COVER:

Standard cover: Synthetic rubber (MSHA approved)

Evergreen EV: High-abrasion, ozone-resistant synthetic rubber (MSHA approved)

Forever FV: Polyethylene-coated synthetic rubber with extreme resistance to abrasion, ozone, and UV (MSHA approved)

PRODUCT NOTES: To order the Evergreen version, add EV at the end of the code.
To order the Forever version, add FV at the end of the code.

AVAILABLE COVER
  • Standard
  • Evergreen
  • Forever
AVAILABLE COVER COLOR
  • Black
HOSE FEATURES
  • Abrasion resistance
  • Ozone resistance
  • High pressure
CERTIFICATIONS

Dimension table - Hydraulic hoses

Consult the table and sort the contents by clicking on the arrows icon in the first column.
Code Hose Size
Outside diameter
Max working pressure
Min burst pressure
Min bend radius
Weight
D.N. mm Inch mm inch bar psi bar psi mm inch kg/mt lb/ft
TS4SP04 6 6.4 1/4" 17.5 0.69 500 7250 2000 29000 150 5.91 0.56 0.38
TS4SP06 10 9.5 3/8" 20.9 0.82 460 6650 1840 26600 180 7.09 0.72 0.48
TS4SP08 12 12.8 1/2" 24.1 0.95 425 6150 1700 24600 230 9.06 0.84 0.56
TS4SP10 16 16 5/8" 27.7 1.09 400 5800 1600 23200 250 9.84 1.12 0.75
TS4SP12 19 19 3/4" 31.7 1.25 380 5500 1520 22000 300 11.81 1.41 0.95
TS4SP16 25 25.4 1" 38.8 1.53 320 4600 1280 18400 340 13.39 1.89 1.27
TS4SP20 31 31.8 1"1/4 49.5 1.95 210 3000 840 12000 460 18.11 3 2.02
TS4SP24 38 38.1 1"1/2 55.9 2.2 185 2650 740 10600 560 22.05 3.38 2.27
TS4SP32 51 50.8 2" 69.2 2.72 175 2550 700 10200 660 25.98 4.62 3.1
