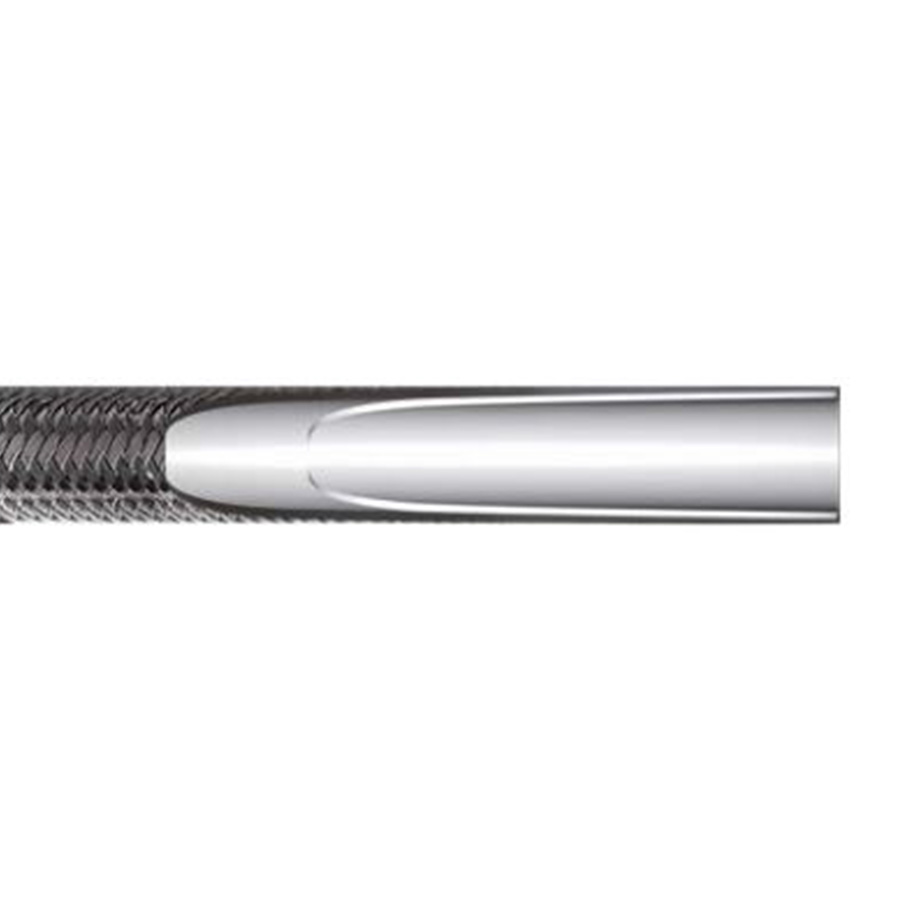

TEKNO FHL
SAE 100 R14
Steam for cleaning; plastic moulding presses; transport of corrosive chemical; food and pharmaceutical products; transport of air
OPERATING TEMPERATURE RANGE:
-70°C/+260°C (-94°F/+500°F)
TUBE:
Synterized PTFE
REINFORCEMENT: 1 stainless steel braid AISI 304
COVER:
AVAILABLE COVER
- Standard
AVAILABLE COVER COLOR
- Black
HOSE FEATURES
- High pressure
- High temperatures
- Reduced bending radius
Dimension table - Hydraulic hoses
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code |
Hose Size
|
Outside diameter
|
Max working pressure
|
Min burst pressure
|
Min bend radius
|
Weight
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.N. | mm | Inch | mm | inch | bar | psi | bar | psi | mm | inch | kg/mt | lb/ft | |
| THFHL02 | 3.2 | 3.2 | 1/8" | 5.9 | 0.23 | 275 | 3988 | 1100 | 15950 | 25 | 0.98 | 0.06 | 0.04 |
| THFHL03 | 5 | 4.8 | 3/16" | 7.4 | 0.29 | 200 | 2900 | 750 | 10880 | 35 | 1.38 | 0.07 | 0.05 |
| THFHL04 | 6 | 6.35 | 1/4" | 9 | 0.35 | 188 | 2720 | 680 | 9860 | 45 | 1.77 | 0.09 | 0.06 |
| THFHL05 | 8 | 7.9 | 5/16" | 10.8 | 0.43 | 170 | 2465 | 600 | 8700 | 50 | 1.97 | 0.13 | 0.09 |
| THFHL06 | 9.5 | 9.5 | 3/8" | 12.4 | 0.49 | 162 | 2350 | 650 | 9430 | 55 | 2.16 | 0.15 | 0.1 |
| THFHL08 | 13 | 12.7 | 1/2" | 15.7 | 0.62 | 120 | 1740 | 480 | 6960 | 70 | 2.75 | 0.21 | 0.14 |
| THFHL10 | 16 | 15.9 | 5/8" | 19.1 | 0.75 | 100 | 1450 | 400 | 5800 | 130 | 5.11 | 0.26 | 0.17 |
| THFHL12 | 19 | 19 | 3/4" | 22.2 | 0.87 | 90 | 1305 | 360 | 5220 | 190 | 7.47 | 0.32 | 0.22 |
| THFHL16 | 25 | 25.4 | 1" | 29.3 | 1.15 | 65 | 943 | 260 | 3770 | 270 | 10.62 | 0.45 | 0.3 |
