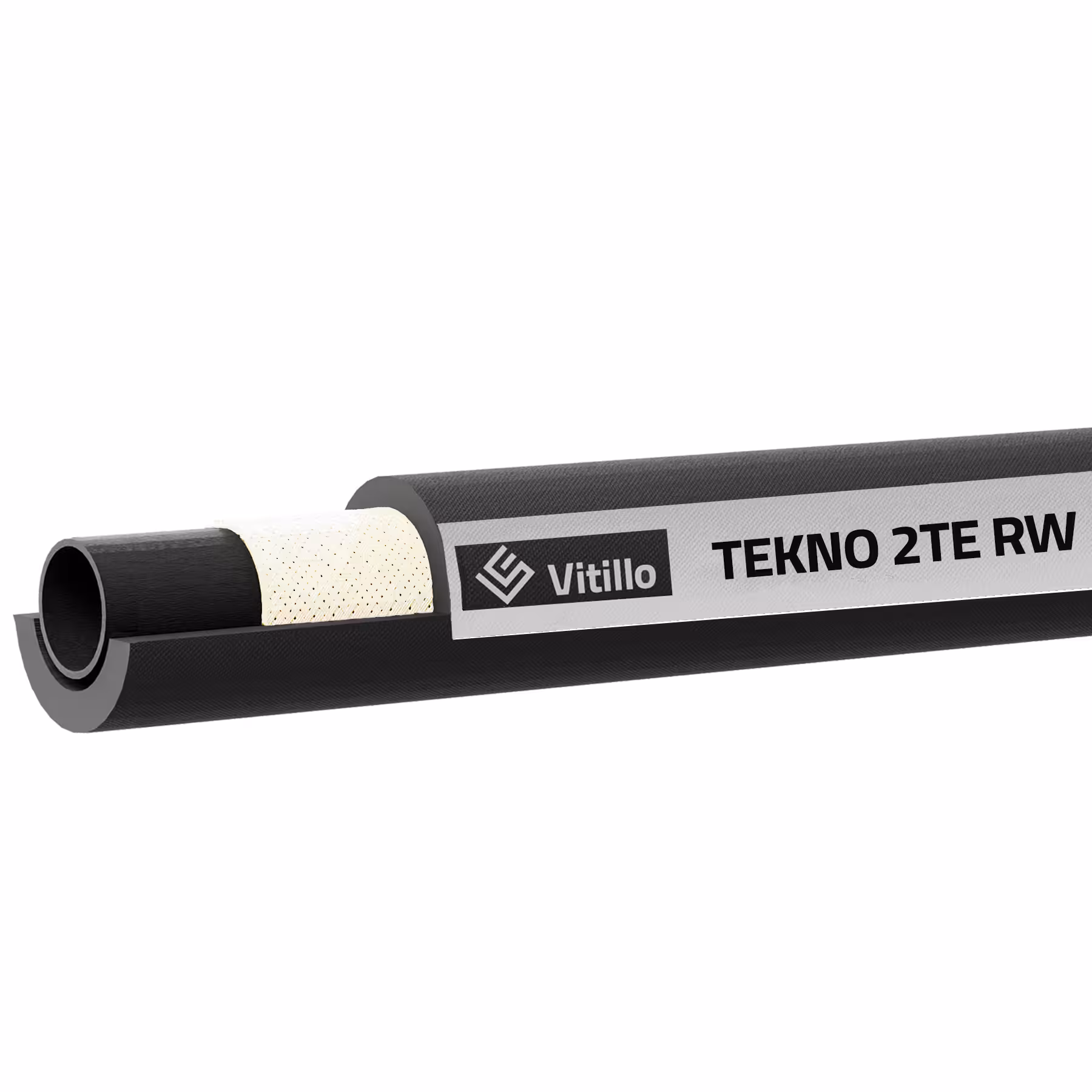

TEKNO 2TE RW
EN 854 2TE, ISO 4079 2TE
Low pressure hydraulic systems for railway applications
OPERATING TEMPERATURE RANGE:
-40°C/+100°C
(-40°F/+212°F)
with peaks of +125°C (257°F)
TUBE:
Oil resistant synthetic rubber
REINFORCEMENT: 1 high tensile textile braid
COVER:
RW Cover: Black fire-retardant synthetic rubber cover
AVAILABLE COVER
- RW Cover
AVAILABLE COVER COLOR
- Black
HOSE FEATURES
- Abrasion resistance
- Ozone resistance
CERTIFICATIONS
Dimension table - Hydraulic hoses
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code |
Hose Size
|
Outside diameter
|
Max working pressure
|
Min burst pressure
|
Min bend radius
|
Weight
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.N. | mm | Inch | mm | inch | bar | psi | bar | psi | mm | inch | kg/mt | lb/ft | |
| TH2TE04RW | 6 | 6.4 | 1/4" | 13.1 | 0.52 | 75 | 1088 | 300 | 4350 | 40 | 1.57 | 0.13 | 0.09 |
| TH2TE05RW | 8 | 7.9 | 5/16" | 14.8 | 0.58 | 68 | 986 | 272 | 3944 | 50 | 1.97 | 0.17 | 0.11 |
| TH2TE06RW | 10 | 9.5 | 3/8" | 16.4 | 0.65 | 63 | 914 | 252 | 3654 | 60 | 2.36 | 0.18 | 0.12 |
| TH2TE08RW | 12 | 12.8 | 1/2" | 20 | 0.79 | 58 | 841 | 232 | 3364 | 70 | 2.75 | 0.26 | 0.17 |
| TH2TE10RW | 16 | 15.9 | 5/8" | 24.4 | 0.96 | 50 | 725 | 200 | 2900 | 90 | 3.54 | 0.36 | 0.24 |
| TH2TE12RW | 19 | 19 | 3/4" | 27.3 | 1.07 | 45 | 653 | 180 | 2610 | 110 | 4.33 | 0.4 | 0.27 |
| TH2TE16RW | 25 | 25.4 | 1" | 34.6 | 1.36 | 40 | 580 | 160 | 2320 | 150 | 5.9 | 0.58 | 0.39 |
| TH2TE20RW | 31 | 31.8 | 1"1/4 | 41 | 1.61 | 35 | 508 | 140 | 2030 | 170 | 6.69 | 0.72 | 0.48 |
