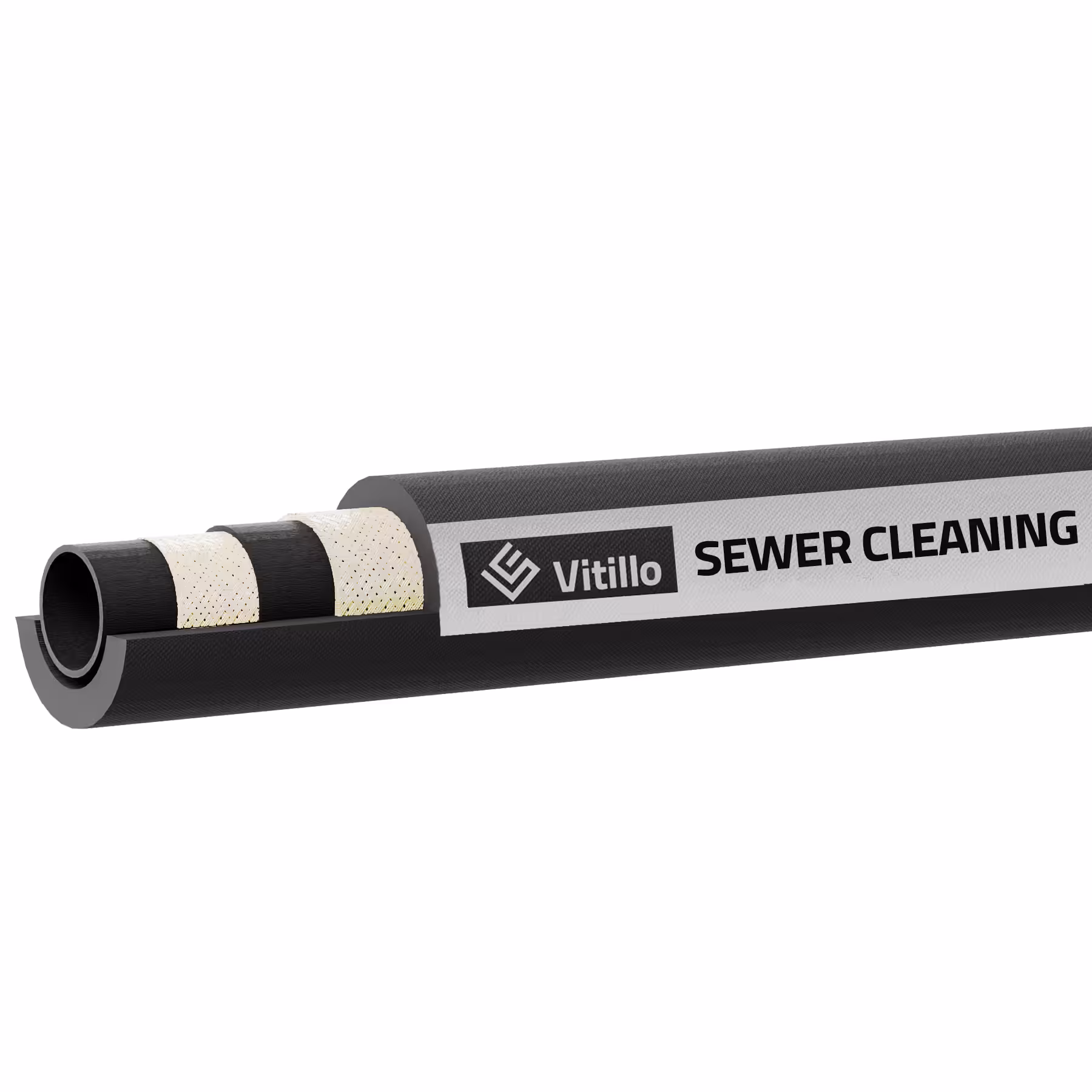

SEWER CLEANING
High pressure washing and cleaning of sewer channels
OPERATING TEMPERATURE RANGE:
-40°C/+80°C
(-40°F/+176°F)
TUBE:
Black smooth synthetic rubber
REINFORCEMENT: 2 aramid textile braids
COVER:
Smooth rubber with very low sliding resistance
PRODUCT NOTES: Available lengths 40/60/80/100/120/150 m
Coming soon (not yet available to order)
AVAILABLE COVER
- Evergreen
AVAILABLE COVER COLOR
- Black
HOSE FEATURES
- Abrasion resistance
- High pressure
- Reduced bending radius
- Safety factor 2.5:1
CERTIFICATIONS
Dimension table - Hydraulic hoses
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code |
Hose Size
|
Outside diameter
|
Max working pressure
|
Min burst pressure
|
Min bend radius
|
Weight
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.N. | mm | Inch | mm | inch | bar | psi | bar | psi | mm | inch | kg/mt | lb/ft | |
| TH2TSW08 | 12 | 12.8 | 1/2" | 24.7 | 0.97 | 250 | 3625 | 625 | 9060 | 70 | 2.75 | 0.47 | 0.32 |
| TH2TSW12 | 19 | 19 | 3/4" | 30.9 | 1.22 | 250 | 3625 | 625 | 9060 | 90 | 3.54 | 0.6 | 0.4 |
| TH2TSW16 | 25 | 25.4 | 1" | 38.9 | 1.53 | 250 | 3625 | 625 | 9060 | 100 | 3.94 | 0.88 | 0.59 |
| TH2TSW20 | 31 | 31.8 | 1"1/4 | 46.4 | 1.83 | 250 | 3625 | 625 | 9060 | 130 | 5.12 | 1.24 | 0.83 |
