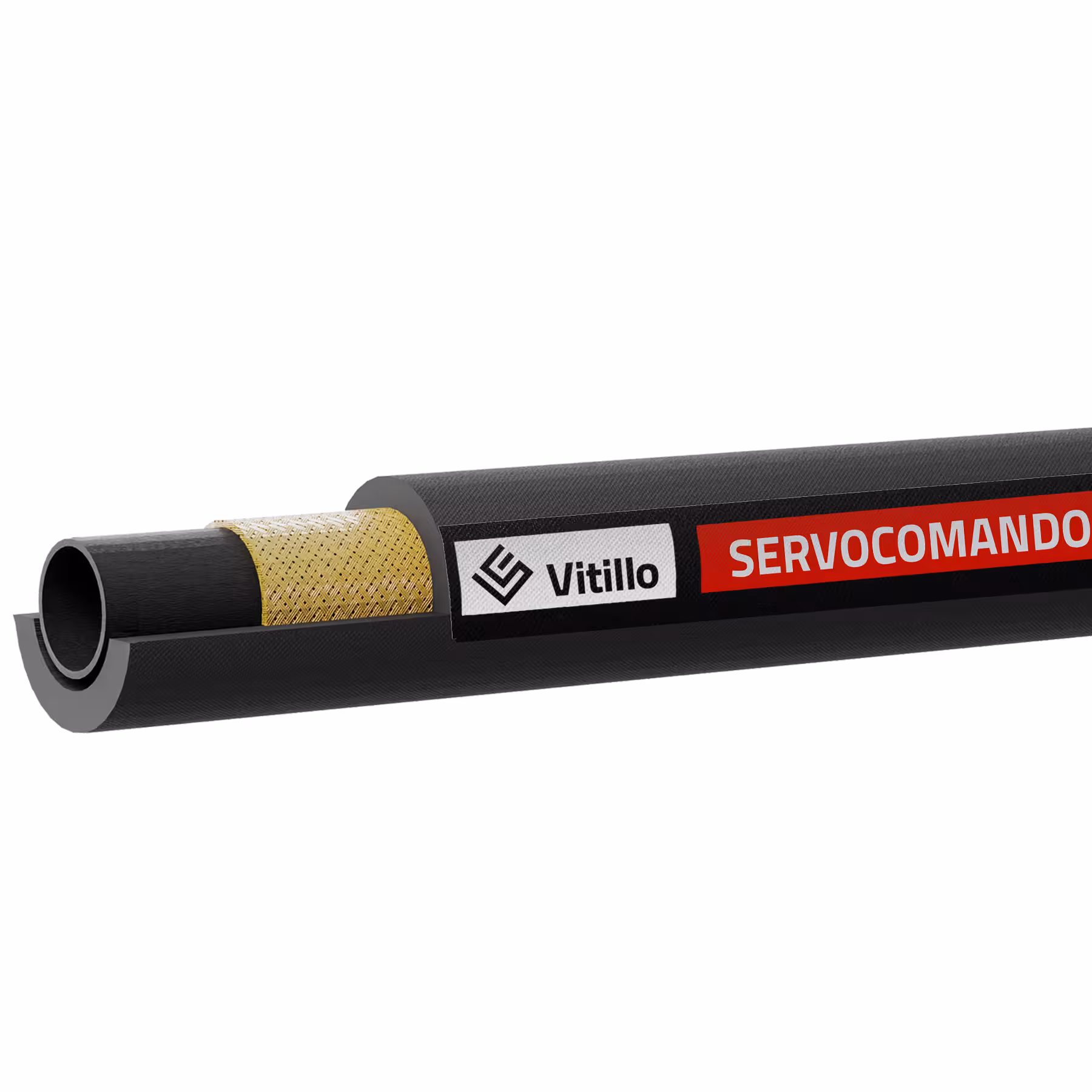

SERVOCOMANDO
Pilot lines; forklifts
OPERATING TEMPERATURE RANGE:
-40°C/+100°C
(-40°F/+212°F)
with peaks of +125°C (257°F)
TUBE:
Oil resistant synthetic rubber
REINFORCEMENT: 1 high tensile steel braid
COVER:
Standard cover: Synthetic rubber (MSHA approved)
Evergreen EV: High-abrasion, ozone-resistant synthetic rubber (MSHA approved)
Forever FV: Polyethylene-coated synthetic rubber with extreme resistance to abrasion, ozone, and UV (MSHA approved)
PRODUCT NOTES: To order the Evergreen version, add EV at the end of the code.
To order the Forever version, add FV at the end of the code.
AVAILABLE COVER
- Standard
- Evergreen
- Forever
AVAILABLE COVER COLOR
- Black
HOSE FEATURES
- Reduced bending radius
CERTIFICATIONS
Dimension table - Hydraulic hoses
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code |
Hose Size
|
Outside diameter
|
Max working pressure
|
Min burst pressure
|
Min bend radius
|
Weight
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.N. | mm | Inch | mm | inch | bar | psi | bar | psi | mm | inch | kg/mt | lb/ft | |
| TH1SC03SC | 5 | 4.8 | 3/16" | 10.8 | 0.42 | 250 | 3625 | 1000 | 14500 | 45 | 1.77 | 0.15 | 0.1 |
| TH1SC04SC | 6 | 6.4 | 1/4" | 12.2 | 0.48 | 250 | 3625 | 1000 | 14500 | 50 | 1.97 | 0.19 | 0.13 |
| TH1SC05SC | 8 | 7.9 | 5/16" | 13.5 | 0.53 | 250 | 3625 | 1000 | 14500 | 55 | 2.17 | 0.22 | 0.15 |
| TH1SC06SC | 10 | 9.5 | 3/8" | 15.8 | 0.62 | 250 | 3625 | 1000 | 14500 | 65 | 2.56 | 0.29 | 0.19 |
| TH1SC08SC | 12 | 12.8 | 1/2" | 19.1 | 0.75 | 250 | 3625 | 1000 | 14500 | 90 | 3.54 | 0.37 | 0.25 |
