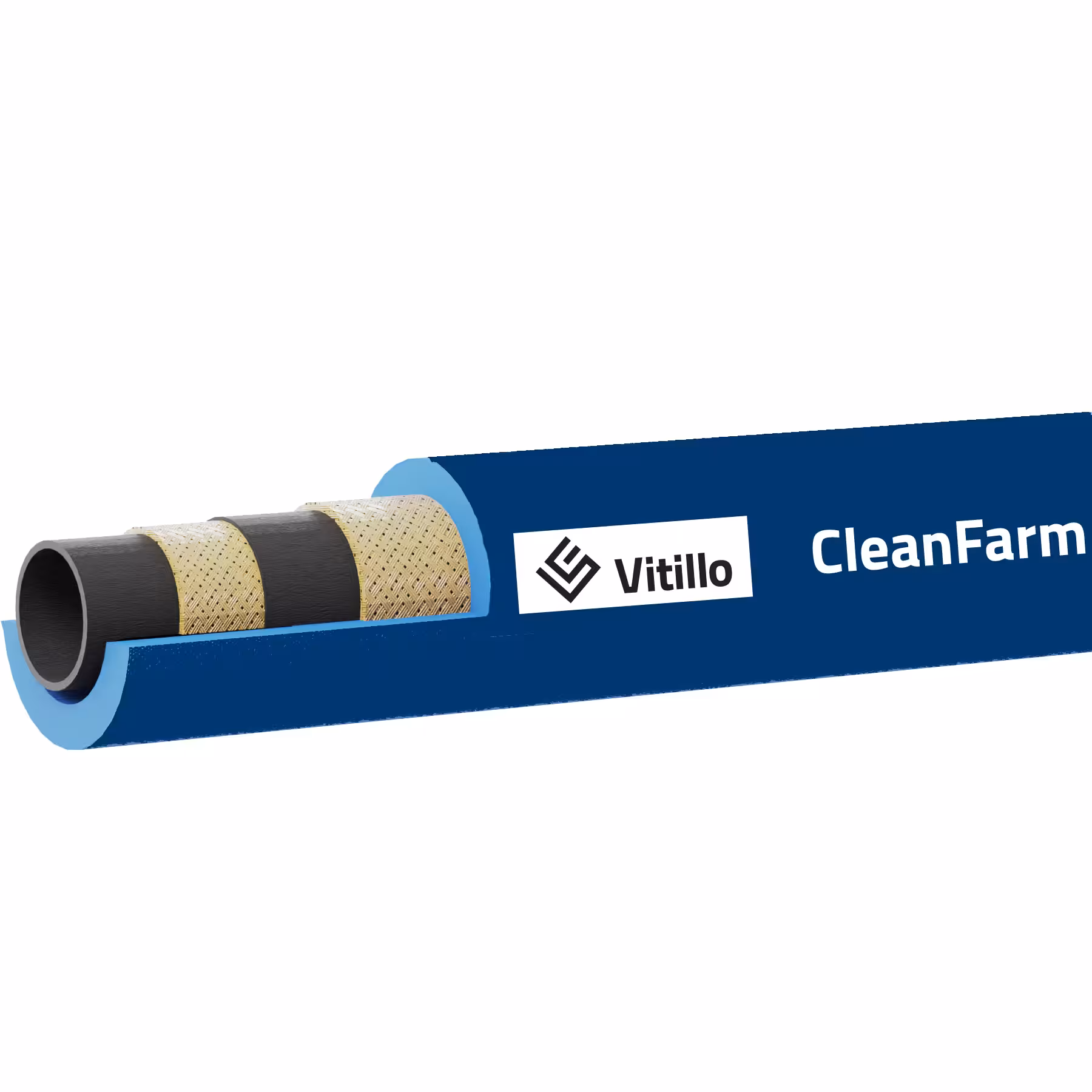

CLEANFARM 2SC
EN 1829 - 2
Professional water jet cleaners for stables and chicken coops
OPERATING TEMPERATURE RANGE:
-40°C/+135°C
(-40°F/+275°F)
with peaks of +150°C (302°F)
TUBE:
Oil and water resistant synthetic rubber
REINFORCEMENT: 2 high tensile steel braids
COVER:
Special synthetic rubber resistant to vegetable, animal and chicken fats
PRODUCT NOTES: Available colors: YELLOW
To order Yellow version, replace B with Y at the end of the code
AVAILABLE COVER
- Standard
AVAILABLE COVER COLOR
- Blue
- Yellow
HOSE FEATURES
- Animal fats resistance
- Reduced bending radius
- Safety factor 4:1
CERTIFICATIONS
Dimension table - Hydraulic hoses
Consult the table and sort the contents by clicking on the arrows icon in the first column.
| Code |
Hose Size
|
Outside diameter
|
Max working pressure
|
Min burst pressure
|
Min bend radius
|
Weight
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.N. | mm | Inch | mm | inch | bar | psi | bar | psi | mm | inch | kg/mt | lb/ft | |
| TJ2SC04CFB | 6 | 6.4 | 1/4" | 13.4 | 0.53 | 400 | 5800 | 1600 | 23200 | 75 | 2.95 | 0.25 | 0.17 |
| TJ2SC05CFB | 8 | 7.9 | 5/16" | 15 | 0.59 | 400 | 5800 | 1600 | 23200 | 85 | 3.34 | 0.3 | 0.2 |
| TJ2SC06CFB | 10 | 9.5 | 3/8" | 17 | 0.67 | 400 | 5800 | 1600 | 23200 | 90 | 3.54 | 0.4 | 0.27 |
| TJ2SC08CFB | 12 | 12.8 | 1/2" | 21.1 | 0.83 | 400 | 5800 | 1600 | 23200 | 130 | 5.11 | 0.59 | 0.4 |
