SWIVEL FEMALE PLUG BSPP
TAPPO FEMMINA GIREVOLE - GAS CILINDRICA SV 60°
Connector gender F1: Female
Thread F1: BSPP
Connector gender F2: None
Thread F2: None
Shape: Straight
* Thrust-wire nut
Dado spinato

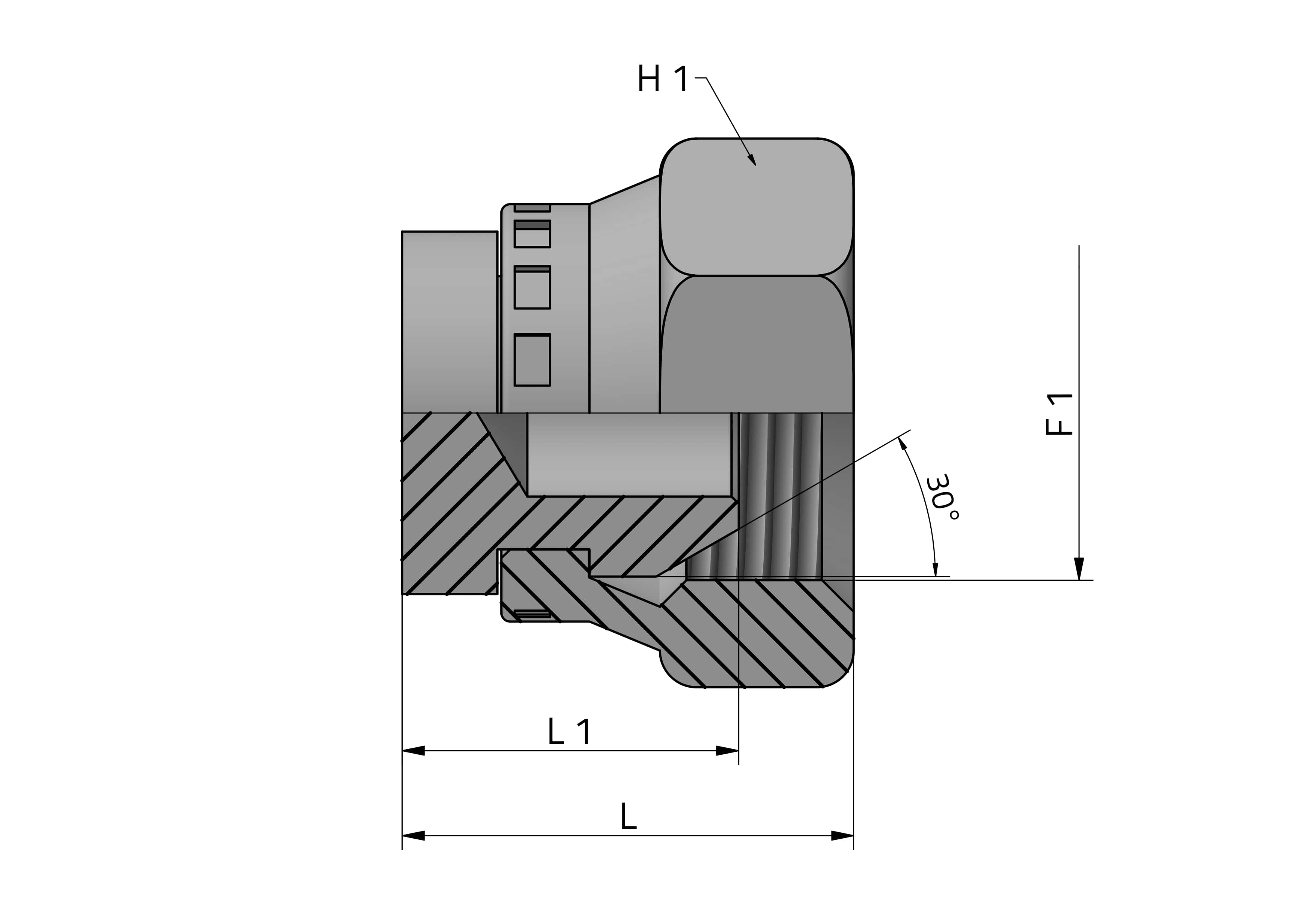

Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code | F1 inch | H1 mm | L mm | L1 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|
| ATFG02 | 1/8 | 15 | 17,5 | 14,2 | 350 | 5076 | |
| ATFG04 | 1/4 | 19 | 20 | 16 | 350 | 5076 | |
| ATFG06 | 3/8 | 22 | 22,7 | 18 | 350 | 5076 | |
| ATFG08 | 1/2 | 27 | 24,5 | 18 | 315 | 4568 | |
| ATFG10 | 5/8 | 28 | 24,5 | 19 | 315 | 4568 | |
| ATFG12 | 3/4 | 32 | 28 | 20 | 250 | 3626 | |
| ATFG16 | 1 | 38 | 30 | 21 | 200 | 2900 | |
| ATFG20 | 1 1/4 | 50 | 34,5 | 24,5 | 160 | 2320 | |
| ATFG24 | 1 1/2 | 55 | 39 | 29 | 125 | 1813 | |
| ATFG32 | 2 | 70 | 41 | 27,2 | 80 | 1160 | * |
