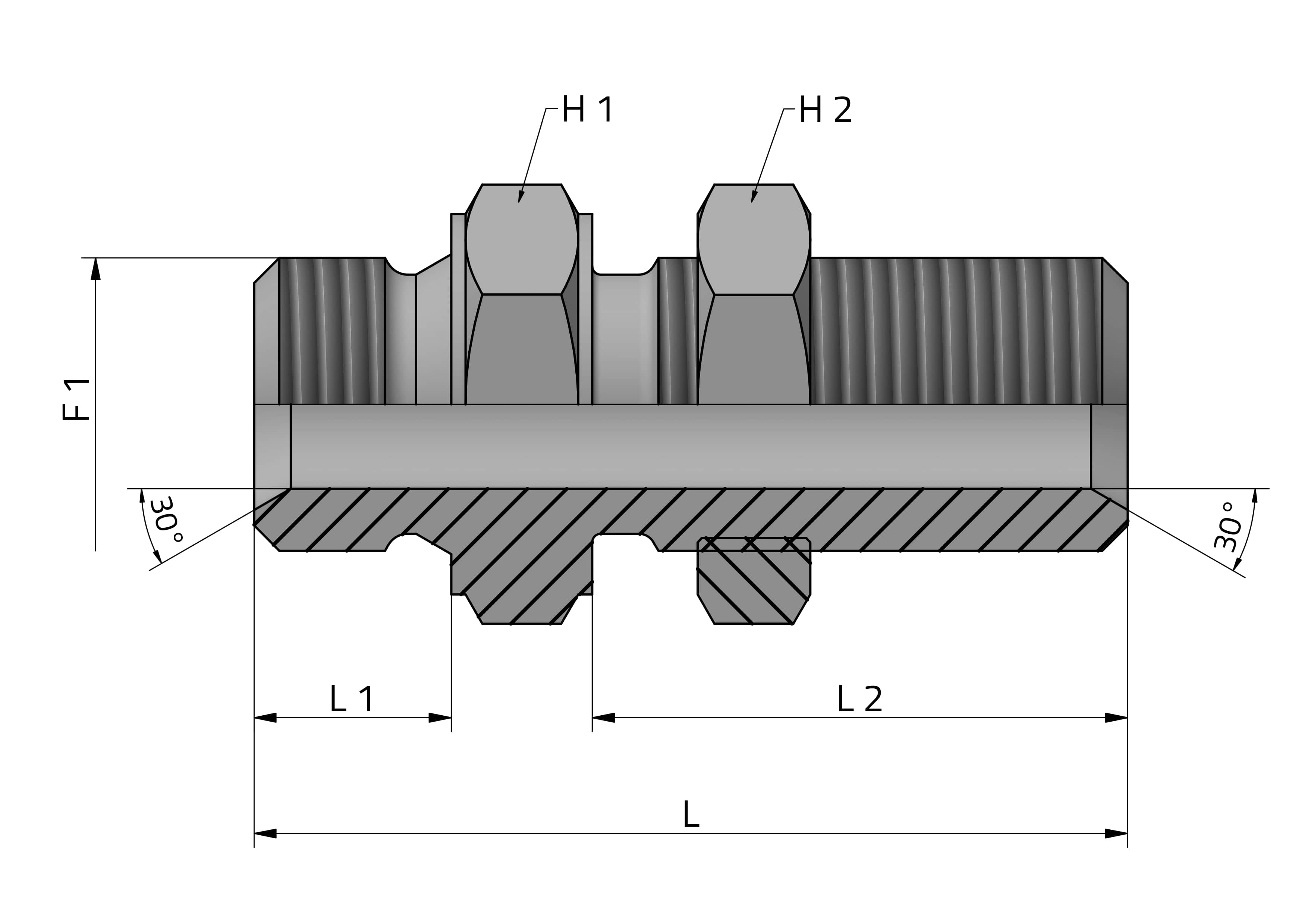

STRAIGHT BULKHEAD ADAPTER BSPP
ADATTATORE PASSAPARETE - MASCHIO GAS CILINDRICO SV 60°
Connector gender F1: Male
Thread F1: BSPP
Connector gender F2: Male
Thread F2: BSPP
Shape: Straight
Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code | F1 inch | H1 mm | H2 mm | L mm | L1 mm | L2 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|---|
| ANGG0202P | 1/8 | 14 | 14 | 41 | 8 | 26 | 350 | 5076 | |
| ANGG0404P | 1/4 | 19 | 19 | 48 | 11 | 29 | 350 | 5076 | |
| ANGG0606P | 3/8 | 22 | 22 | 55.5 | 12.5 | 34 | 350 | 5076 | |
| ANGG0808P | 1/2 | 27 | 27 | 64 | 14 | 38 | 315 | 4568 | |
| ANGG1010P | 5/8 | 30 | 30 | 67,5 | 16 | 41,5 | 315 | 4568 | |
| ANGG1212P | 3/4 | 32 | 36 | 73 | 16 | 45 | 250 | 3626 | |
| ANGG1616P | 1 | 41 | 41 | 86 | 18 | 55 | 200 | 2900 | |
| ANGG2020P | 1 1/4 | 50 | 50 | 81 | 20 | 44 | 160 | 2320 | |
| ANGG2424P | 1 1/2 | 55 | 55 | 88 | 22 | 48 | 125 | 1813 | |
| ANGG3232P | 2 | 70 | 70 | 95 | 24 | 53 | 80 | 1160 |
