BRANCH TEE MALE BSPP - MALE BSPT
ADATTATORE T- MASCHIO GAS CILINDRICO SV 60°- MASCHIO GAS CONICO AL PIEDE
Connector gender F1: Male
Thread F1: BSPP
Connector gender F2: Male
Thread F2: BSPT
Shape: T adapter

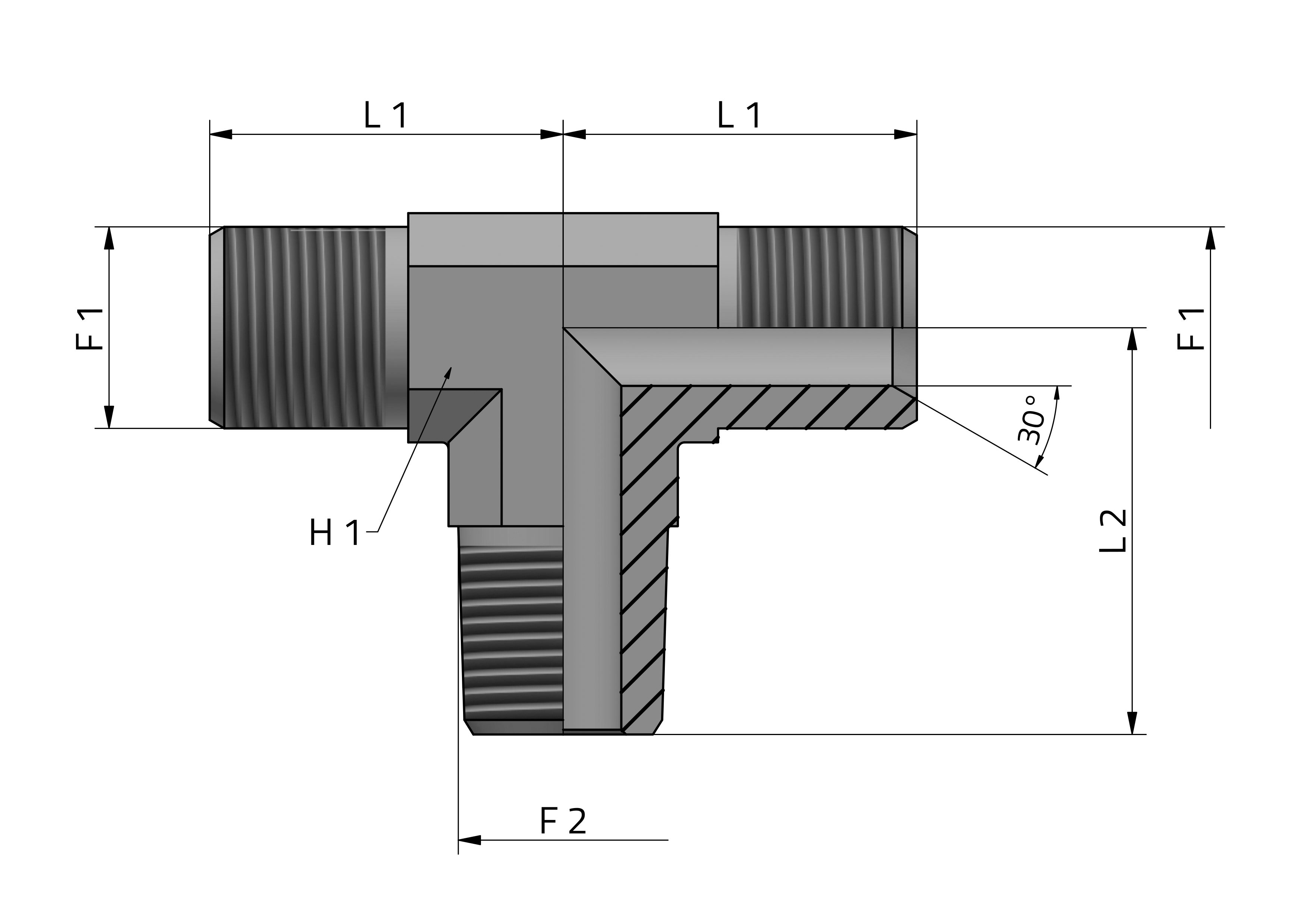

Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code | F1 inch | F2 inch | H1 mm | L1 mm | L2 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|
| TMG02MGK02P | 1/8 | 1/8 | 14 | 22 | 21 | 350 | 5076 | |
| TMG04MGK04P | 1/4 | 1/4 | 14 | 26 | 28 | 350 | 5076 | |
| TMG06MGK06P | 3/8 | 3/8 | 19 | 29 | 31 | 350 | 5076 | |
| TMG08MGK08P | 1/2 | 1/2 | 22 | 36.5 | 37.5 | 315 | 4568 | |
| TMG10MGK08P | 5/8 | 1/2 | 27 | 38,5 | 39 | 315 | 4568 | |
| TMG12MGK12P | 3/4 | 3/4 | 27 | 42 | 42 | 250 | 3626 | |
| TMG16MGK16P | 1 | 1 | 33 | 52,5 | 52,5 | 200 | 2900 | |
| TMG20MGK20P | 1 1/4 | 1 1/4 | 41 | 56 | 60 | 160 | 2320 |
