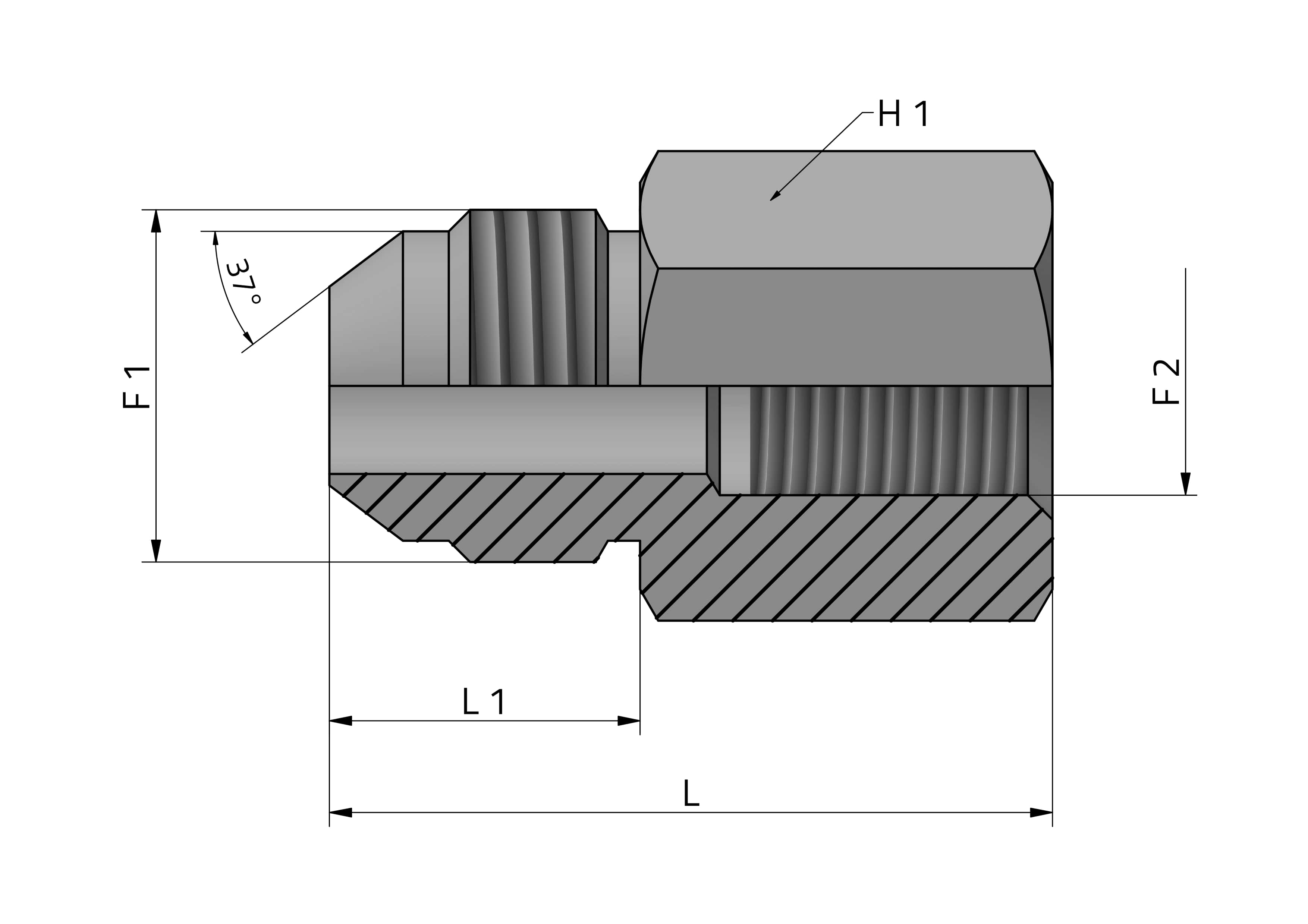

ADAPTOR MALE JIC – FEMALE BSPP
ADATTATORE DIRITTO - MASCHIO JIC - FEMMINA FISSA GAS CILINDRICA
Connector gender F1: Male
Thread F1: JIC 37°
Connector gender F2: Female
Thread F2: BSPP
Shape: Straight
Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code | F1 inch | F2 inch | H1 mm | L mm | L1 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|
| AMJ04FFG02 | 7/16 | 1/8 | 14 | 30 | 14 | 315 | 4568 | |
| AMJ04FFG04 | 7/16 | 1/4 | 19 | 35 | 14 | 400 | 5800 | |
| AMJ05FFG02 | 1/2 | 1/8 | 14 | 30 | 14 | 315 | 4568 | |
| AMJ05FFG04 | 1/2 | 1/4 | 19 | 35 | 14 | 400 | 5800 | |
| AMJ06FFG04 | 9/16 | 1/4 | 19 | 35 | 14,1 | 400 | 5800 | |
| AMJ06FFG06 | 9/16 | 3/8 | 22 | 36 | 14,1 | 350 | 5075 | |
| AMJ08FFG04 | 3/4 | 1/4 | 22 | 39 | 16,7 | 420 | 6090 | |
| AMJ08FFG06 | 3/4 | 3/8 | 22 | 39 | 16,7 | 350 | 5075 | |
| AMJ08FFG08 | 3/4 | 1/2 | 30 | 43 | 16,7 | 400 | 5800 | |
| AMJ10FFG08 | 7/8 | 1/2 | 30 | 45,5 | 19,3 | 350 | 5075 | |
| AMJ12FFG08 | 1 1/16 | 1/2 | 30 | 48 | 21,9 | 350 | 5075 | |
| AMJ12FFG12 | 1 1/16 | 3/4 | 36 | 51 | 21,9 | 350 | 5075 | |
| AMJ16FFG16 | 1 5/16 | 1 | 41 | 54 | 23,1 | 380 | 5510 | |
| AMJ20FFG16 | 1 5/8 | 1 | 46 | 55,5 | 24,3 | 280 | 4060 | |
| AMJ20FFG20 | 1 5/8 | 1 1/4 | 50 | 60,5 | 24,3 | 210 | 3045 | |
| AMJ24FFG20 | 1 7/8 | 1 1/4 | 50 | 64 | 27,5 | 210 | 3045 | |
| AMJ24FFG24 | 1 7/8 | 1 1/2 | 60 | 65,5 | 27,5 | 210 | 3045 |
