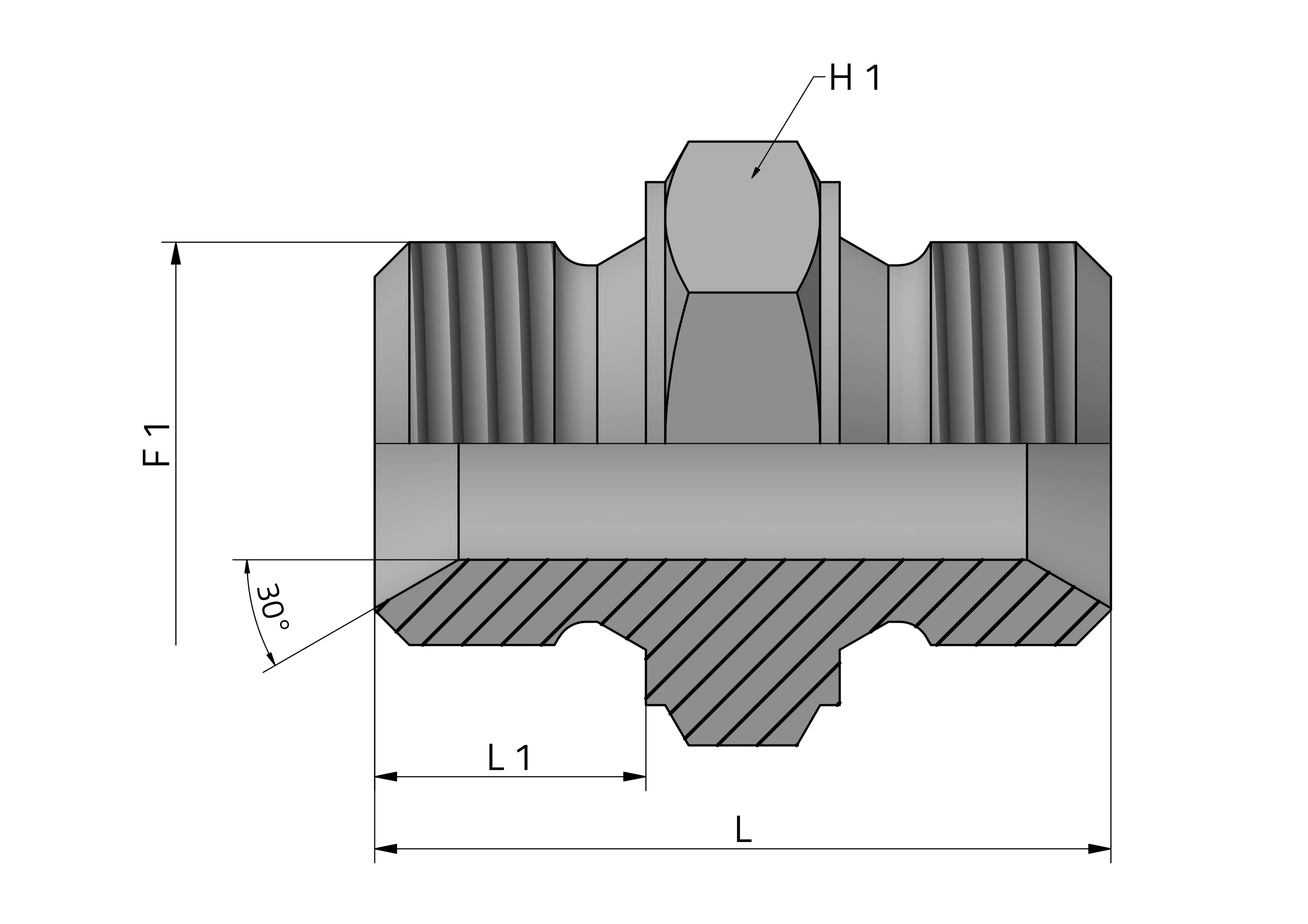

ADAPTER MALE BSPP - MALE BSPP
ADATTATORE DIRITTO - MASCHIO GAS CILINDRICO SV 60°
Connector gender F1: Male
Thread F1: BSPP
Connector gender F2: Male
Thread F2: BSPP
Shape: Straight
Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code | F1 inch | H1 mm | L mm | L1 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|
| ANGG0202 | 1/8 | 14 | 25 | 9.5 | 350 | 5076 | |
| ANGG0404 | 1/4 | 19 | 29 | 11 | 350 | 5076 | |
| ANGG0606 | 3/8 | 22 | 34 | 12.5 | 350 | 5076 | |
| ANGG0808 | 1/2 | 27 | 38 | 14 | 315 | 4568 | |
| ANGG1010 | 5/8 | 30 | 42 | 16 | 315 | 4568 | |
| ANGG1212 | 3/4 | 32 | 42 | 16 | 250 | 3626 | |
| ANGG1616 | 1 | 41 | 48 | 18 | 200 | 2900 | |
| ANGG2020 | 1 1/4 | 50 | 54 | 20 | 160 | 2320 | |
| ANGG2424 | 1 1/2 | 55 | 57 | 21 | 125 | 1813 | |
| ANGG3232 | 2 | 70 | 67 | 25 | 80 | 1160 |
