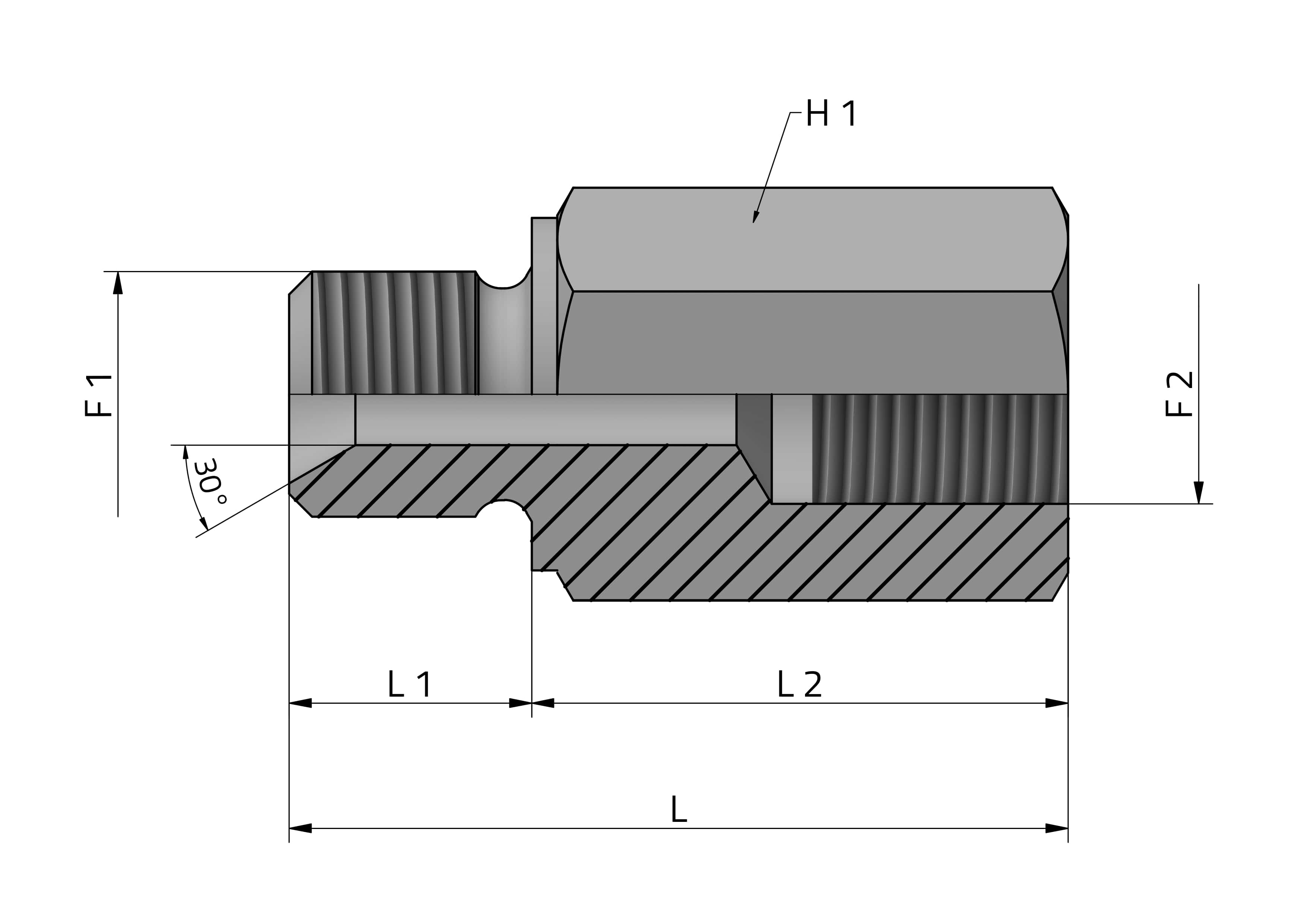

ADAPTER MALE BSPP - Female BSPP
PROLUNGA - MASCHIO GAS CILINDRICO SV 60° - FEMMINA FISSA GAS CILINDRICA
Connector gender F1: Male
Thread F1: BSPP
Connector gender F2: Female
Thread F2: BSPP
Shape: Straight
Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code | F1 inch | F2 inch | H1 mm | L mm | L1 mm | L2 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|---|
| APMFG0230.5 | 1/8 | 1/8 | 14 | 30.5 | 9.5 | 21 | 350 | 5076 | |
| APMFG0270.5 | 1/8 | 1/8 | 14 | 70,5 | 9,5 | 61 | 350 | 5076 | |
| APMFG0426 | 1/4 | 1/4 | 19 | 26 | 11 | 15 | 350 | 5076 | |
| APMFG0433 | 1/4 | 1/4 | 19 | 33 | 11 | 22 | 350 | 5076 | |
| APMFG0442 | 1/4 | 1/4 | 19 | 42 | 11 | 31 | 350 | 5076 | |
| APMFG0450 | 1/4 | 1/4 | 19 | 50 | 11 | 39 | 350 | 5076 | |
| APMFG0455 | 1/4 | 1/4 | 19 | 55 | 11 | 44 | 350 | 5076 | |
| APMFG0635 | 3/8 | 3/8 | 22 | 35 | 13 | 22 | 350 | 5076 | |
| APMFG0639 | 3/8 | 3/8 | 22 | 39 | 13 | 26 | 350 | 5076 | |
| APMFG0642 | 3/8 | 3/8 | 22 | 42 | 13 | 29 | 350 | 5076 | |
| APMFG0654 | 3/8 | 3/8 | 22 | 54 | 13 | 41 | 350 | 5076 | |
| APMFG0674 | 3/8 | 3/8 | 22 | 74 | 13 | 61 | 350 | 5076 | |
| APMFG0835 | 1/2 | 1/2 | 27 | 35 | 14 | 21 | 315 | 4568 | |
| APMFG0840 | 1/2 | 1/2 | 27 | 40 | 14 | 26 | 315 | 4568 | |
| APMFG0845 | 1/2 | 1/2 | 27 | 45 | 14 | 31 | 315 | 4568 | |
| APMFG0850 | 1/2 | 1/2 | 27 | 50 | 14 | 36 | 315 | 4568 | |
| APMFG0860 | 1/2 | 1/2 | 27 | 60 | 14 | 46 | 315 | 4568 | |
| APMFG0874 | 1/2 | 1/2 | 27 | 74 | 14 | 60 | 315 | 4568 | |
| APMFG08104 | 1/2 | 1/2 | 27 | 104 | 14 | 90 | 315 | 4568 | |
| APMFG1045 | 5/8 | 5/8 | 30 | 45 | 16 | 29 | 250 | 3626 | |
| APMFG1248 | 3/4 | 3/4 | 32 | 48 | 16 | 32 | 250 | 3626 | |
| APMFG1257 | 3/4 | 3/4 | 32 | 57 | 16 | 41 | 250 | 3626 | |
| APMFG1267 | 3/4 | 3/4 | 32 | 67 | 16 | 51 | 250 | 3626 | |
| APMFG1272 | 3/4 | 3/4 | 32 | 72 | 16 | 56 | 250 | 3626 | |
| APMFG1654 | 1 | 1 | 41 | 54 | 18 | 36 | 200 | 2900 | |
| APMFG1660 | 1 | 1 | 41 | 60 | 18 | 42 | 200 | 2900 | |
| APMFG1676 | 1 | 1 | 41 | 76 | 18 | 58 | 200 | 2900 | |
| APMFG1680 | 1 | 1 | 41 | 80 | 18 | 62 | 200 | 2900 | |
| APMFG1690 | 1 | 1 | 41 | 90 | 18 | 72 | 200 | 2900 | |
| APMFG2062 | 1 1/4 | 1 1/4 | 50 | 62 | 20 | 42 | 160 | 2320 | |
| APMFG2076 | 1 1/4 | 1 1/4 | 50 | 76 | 20 | 56 | 160 | 2320 | |
| APMFG2092 | 1 1/4 | 1 1/4 | 50 | 92 | 20 | 72 | 160 | 2320 | |
| APMFG2465 | 1 1/2 | 1 1/2 | 55 | 65 | 22 | 43 | 125 | 1813 | |
| APMFG2495 | 1 1/2 | 1 1/2 | 55 | 95 | 22 | 73 | 125 | 1813 | |
| APMFG3257 | 2 | 2 | 70 | 57 | 24 | 32 | 80 | 1160 | |
| APMFG3262 | 2 | 2 | 70 | 62 | 24 | 37 | 80 | 1160 |
