90° ADAPTOR MALE JIC - FEMALE NPT
GOMITO 90° - MASCHIO JIC - FEMMINA FISSA NPT
Connector gender F1: Male
Thread F1: JIC 37°
Connector gender F2: Female
Thread F2: NPT
Shape: 90° elbow
Tabella delle dimensioni - Adattatori
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.

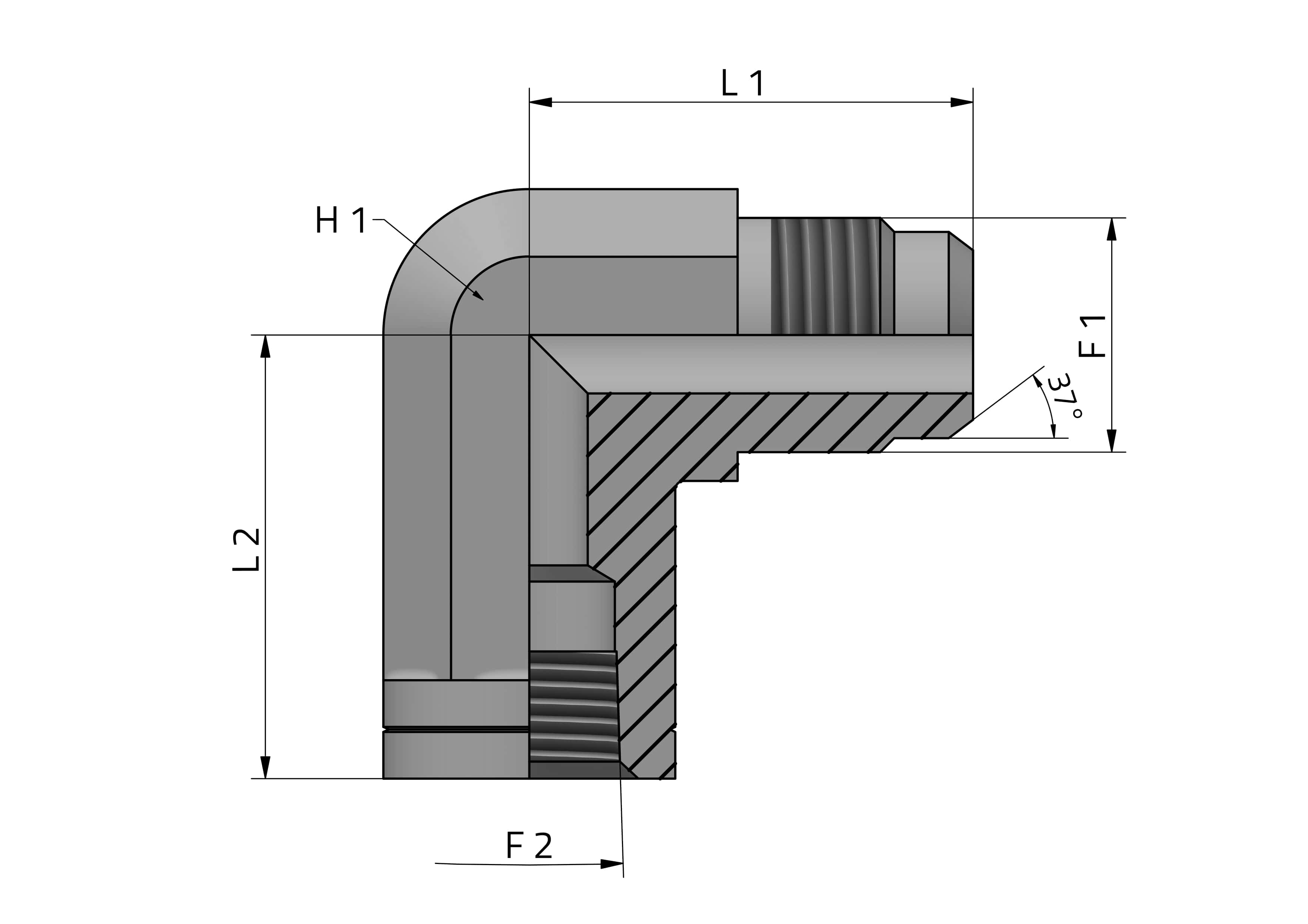

| Code | F1 inch | F2 inch | H1 mm | L1 mm | L2 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|
| LMJ04FFN02 | 7/16 | 1/8 | 14 | 27,5 | 18 | 420 | 6090 | |
| LMJ04FFN04 | 7/16 | 1/4 | 19 | 29 | 22,5 | 420 | 6090 | |
| LMJ05FFN02 | 1/2 | 1/8 | 14 | 27,5 | 20 | 420 | 6090 | |
| LMJ05FFN04 | 1/2 | 1/4 | 19 | 29 | 22,5 | 420 | 6090 | |
| LMJ06FFN02 | 9/16 | 1/8 | 14 | 27,5 | 18 | 420 | 6090 | |
| LMJ06FFN04 | 9/16 | 1/4 | 19 | 31 | 22,5 | 420 | 6090 | |
| LMJ06FFN06 | 9/16 | 3/8 | 22 | 31,5 | 26 | 420 | 6090 | |
| LMJ08FFN04 | 3/4 | 1/4 | 19 | 32,2 | 22,5 | 420 | 6090 | |
| LMJ08FFN06 | 3/4 | 3/8 | 22 | 36 | 36 | 420 | 6090 | |
| LMJ10FFN08 | 7/8 | 1/2 | 27 | 42 | 31 | 350 | 5075 | |
| LMJ12FFN08 | 1 1/16 | 1/2 | 27 | 42 | 31 | 350 | 5075 | |
| LMJ12FFN12 | 1 1/16 | 3/4 | 33 | 48 | 34,5 | 350 | 5075 | |
| LMJ16FFN16 | 1 5/16 | 1 | 41 | 55 | 41 | 170 | 2465 |
