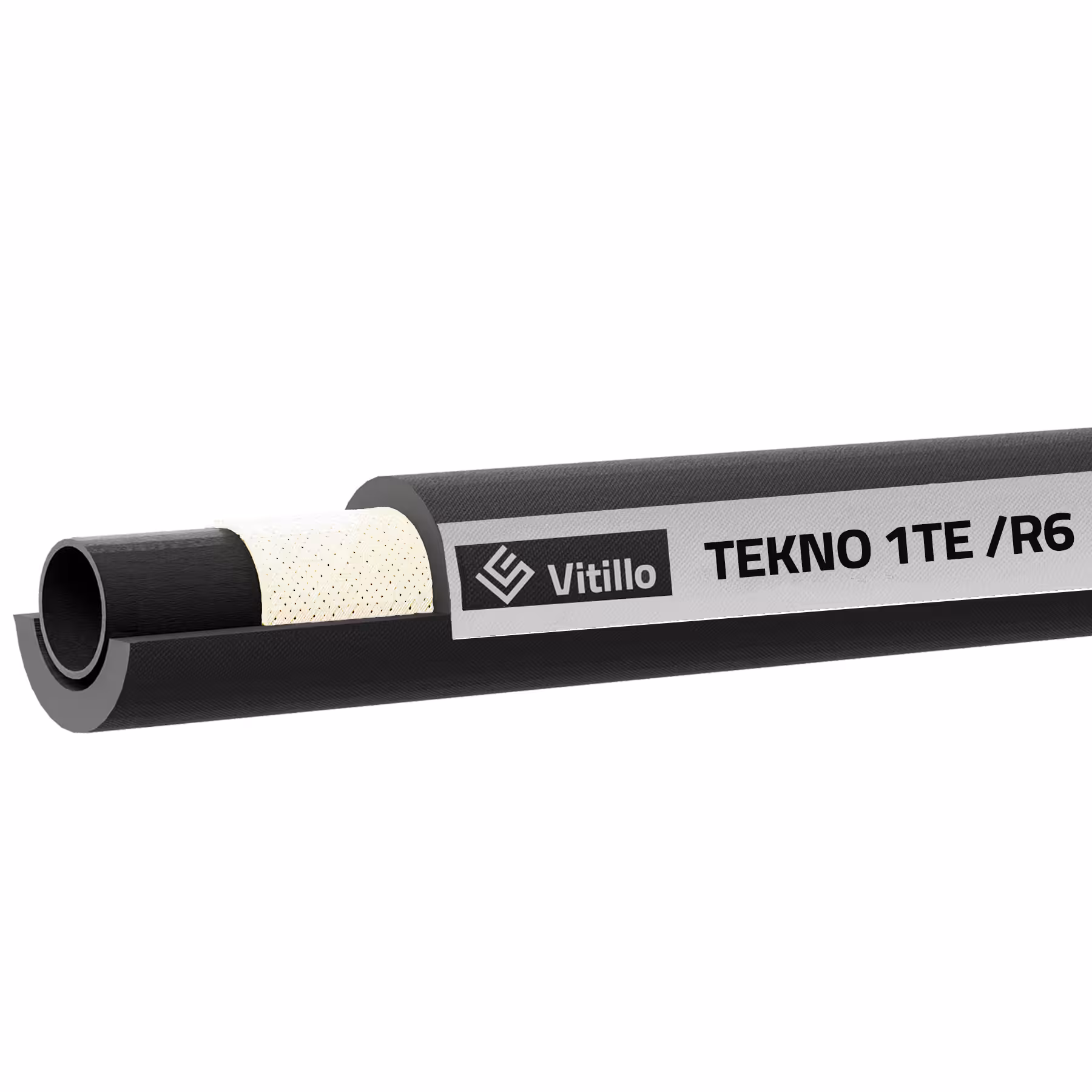

TEKNO 1TE/R6
EN 854 1TE, SAE100 R6
Low pressure hydraulic systems; return lines
OPERATING TEMPERATURE RANGE:
-40°C/+100°C
(-40°F/+212°F)
TUBE:
Oil resistant synthetic rubber
REINFORCEMENT: 1 high tensile textile braid
COVER:
Standard cover: Synthetic rubber (MSHA approved)
AVAILABLE COVER
- Standard
AVAILABLE COVER COLOR
- Black
CERTIFICATIONS
Tabella delle dimensioni - Tubi
Consulta la tabella e ordina i contenuti cliccando sull’icona delle frecce nella prima colonna.
| Code |
Hose Size
|
Outside diameter
|
Max working pressure
|
Min burst pressure
|
Min bend radius
|
Weight
|
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.N. | mm | Inch | mm | inch | bar | psi | bar | psi | mm | inch | kg/mt | lb/ft | |
| TH1TER603 | 5 | 4.8 | 3/16" | 10.3 | 0.41 | 35 | 507 | 140 | 2030 | 35 | 1.38 | 0.1 | 0.06 |
| TH1TER604 | 6 | 6.4 | 1/4" | 12.6 | 0.5 | 28 | 406 | 112 | 1624 | 45 | 1.77 | 0.12 | 0.08 |
| TH1TER605 | 8 | 7.9 | 5/16" | 14 | 0.55 | 28 | 406 | 112 | 1624 | 65 | 2.56 | 0.13 | 0.09 |
| TH1TER606 | 10 | 9.5 | 3/8" | 15.8 | 0.62 | 28 | 406 | 112 | 1624 | 75 | 2.95 | 0.17 | 0.11 |
| TH1TER608 | 12 | 12.8 | 1/2" | 19.4 | 0.76 | 28 | 406 | 112 | 1624 | 90 | 3.54 | 0.22 | 0.15 |
| TH1TER610 | 16 | 16 | 5/8" | 23 | 0.91 | 24 | 348 | 96 | 1392 | 115 | 4.53 | 0.29 | 0.19 |
| TH1TER612 | 19 | 19 | 3/4" | 25.8 | 1.02 | 21 | 305 | 84 | 1218 | 150 | 5.91 | 0.32 | 0.21 |
| TH1TER616 | 25 | 25.4 | 1" | 33 | 1.3 | 20 | 290 | 80 | 1160 | 205 | 8.07 | 0.45 | 0.3 |
