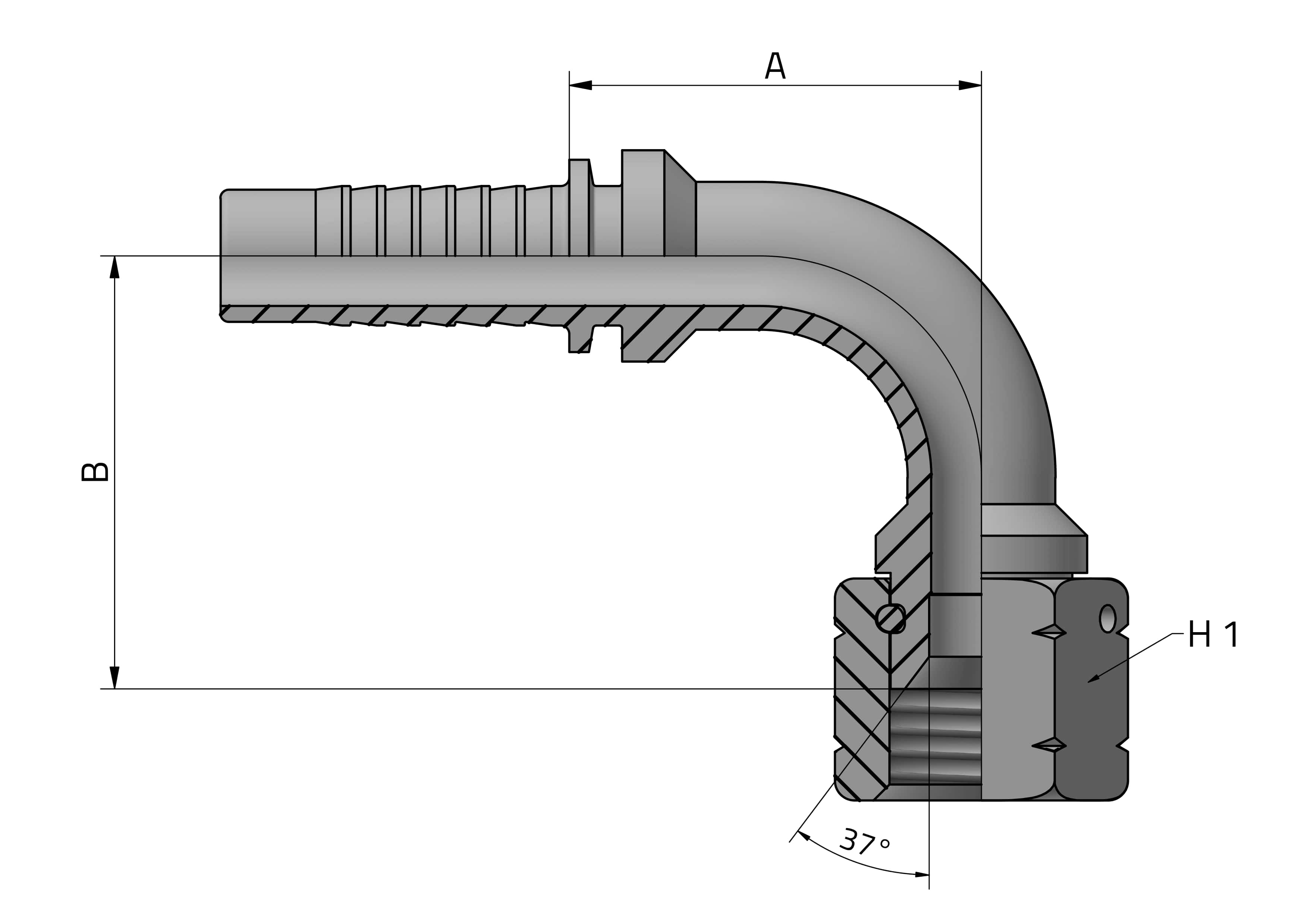

JIC 37° FEMALE - 90° ELBOW - THRUST WIRE NUT

JIC 37° FEMALE - 90° ELBOW - THRUST WIRE NUT

FEMMINA 90° JIC SV 37° CON DADO SPINATO

Type: Standard

Connector gender F1: Female

Thread F1: JIC 37°

Shape: 90° elbow

Code D.N. Hose size mm Hose size inch T inch T/1 inch A mm B mm H1 mm PN bar PN psi Note
F90J0304SP 3 4,8 3/16 7/16 20 23 26 17 500 7252
F90J0305SP 3 4,8 3/16 1/2 20 23 27 17 420 6091
F90J0404SP 4 6,4 1/4 7/16 20 23 26 17 500 7252
F90J0405SP 4 6,4 1/4 1/2 20 23 27 17 420 6091
F90J0406SP 4 6,4 1/4 9/16 18 23 27 19 420 6091
F90J0505SP 5 7,9 5/16 1/2 20 31,5 32 17 420 6091
F90J0506SP 5 7,9 5/16 9/16 18 31,5 32 19 420 6091
F90J0508SP 5 7,9 5/16 3/4 16 31,5 32,5 24 420 6091
F90J0606SP 6 9,5 3/8 9/16 18 33 35 19 420 6091
F90J0608SP 6 9,5 3/8 3/4 16 33 36,5 24 420 6091
F90J0610SP 6 9,5 3/8 7/8 14 33 39,5 27 350 5076
F90J0808SP 8 12,5 1/2 3/4 16 39 41 24 420 6091
F90J0810SP 8 12,5 1/2 7/8 14 39 42,5 27 350 5076
F90J0812SP 8 12,5 1/2 1 1/16 12 39 50 32 350 5076
F90J1010SP 10 16 5/8 7/8 14 49 50 27 350 5076
F90J1012SP 10 16 5/8 1 1/16 12 49 55 32 350 5076
F90J1210SP 12 19 3/4 7/8 14 53,5 58 27 350 5076
F90J1212SP 12 19 3/4 1 1/16 12 53,5 58 32 350 5076
F90J1216SP 12 19 3/4 1 5/16 12 53,5 62,5 41 280 4061
F90J1612SP 16 25,4 1 1 1/16 12 69 80 32 350 5076
F90J1616SP 16 25,4 1 1 5/16 12 73 69,5 41 280 4061
F90J1620SP 16 25,4 1 1 5/8 12 73 78,5 50 280 4061
F90J2020SP 20 31,8 1 1/4 1 5/8 12 89 91,5 50 280 4061
F90J2024SP 20 31,8 1 1/4 1 7/8 12 89 99 55 210 3046
F90J2424SP 24 38,1 1 1/2 1 7/8 12 101 112,5 55 210 3046
F90J2432SP 24 38,1 1 1/2 2 1/2 12 101 115,5 70 140 2030
F90J3232SP 32 50,8 2 2 1/2 12 135 136 70 140 2030
