T ADAPTER DIN STANDPIPE/DIN MALE/DIN MALE
ADATTATORE T MASCHIO DIN - TUBO AL BRACCIO
Connector gender F1: Male
Thread F1: DIN
Connector gender F2: Standpipe
Thread F2: DIN
Shape: T adapter
Note: TME06LTL06B.1 for body only
TME06LTL06B.3 for nut and cutting ring included

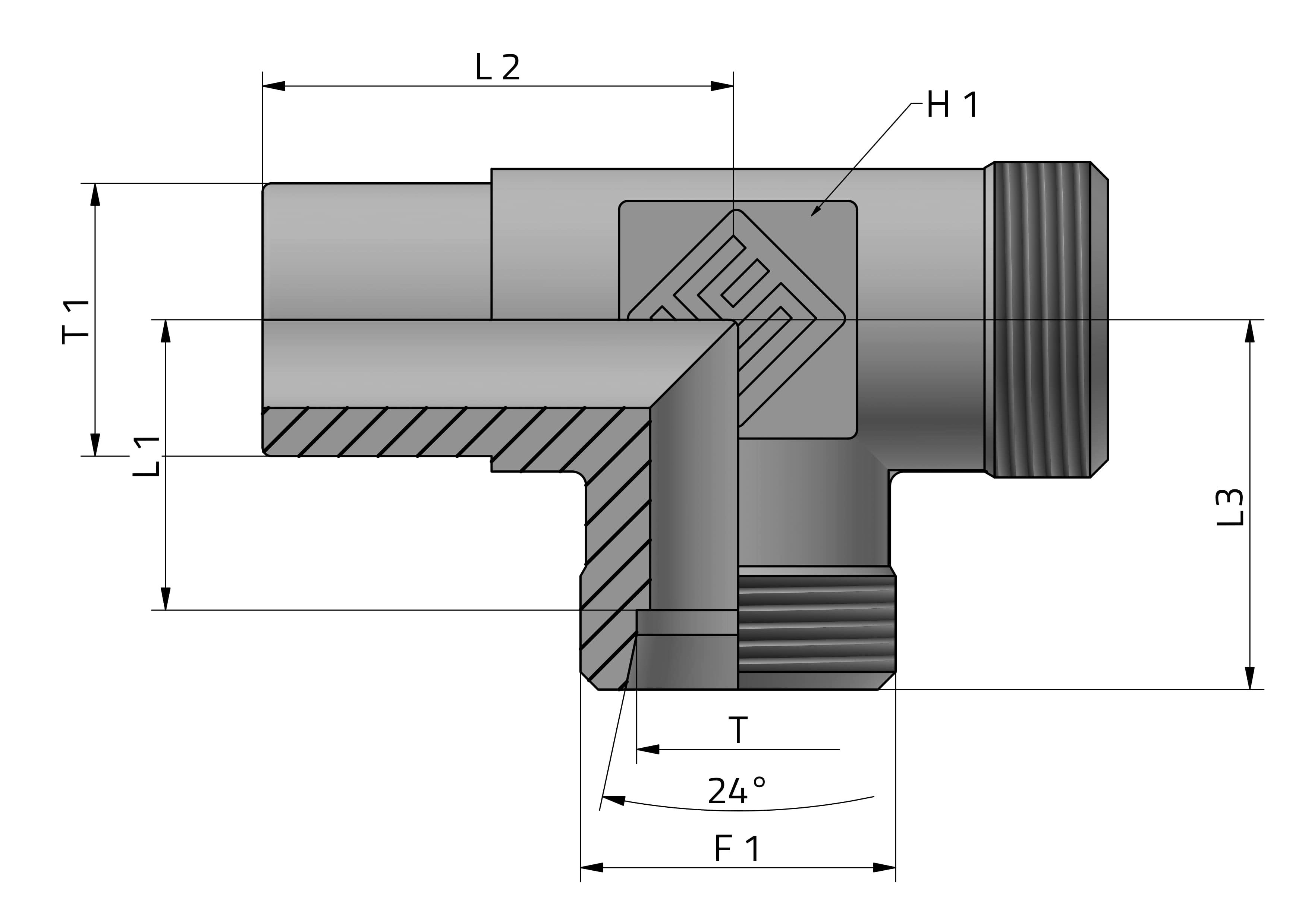

| Code | F1 mm | H1 mm | L1 mm | L2 mm | L3 mm | T mm | T1 mm | PN bar | PN psi | Note |
|---|---|---|---|---|---|---|---|---|---|---|
| TME06LTL06B.1 | 12x1,5 | 12 | 12 | 26,5 | 19 | 6 | 6 | 500 | 7251 | |
| TME08LTL08B.1 | 14x1,5 | 12 | 14 | 27,5 | 21 | 8 | 8 | 500 | 7251 | |
| TME10LTL10B.1 | 16x1,5 | 14 | 15 | 29 | 22 | 10 | 10 | 500 | 7251 | |
| TME12LTL12B.1 | 18x1,5 | 17 | 17 | 29,5 | 24 | 12 | 12 | 400 | 5801 | |
| TME15LTL15B.1 | 22x1,5 | 19 | 21 | 32,5 | 28 | 15 | 15 | 400 | 5801 | |
| TME18LTL18B.1 | 26x1,5 | 24 | 23,5 | 37 | 31 | 18 | 18 | 400 | 5801 | |
| TME22LTL22B.1 | 30x2 | 27 | 27,5 | 39 | 35 | 22 | 22 | 250 | 3626 | |
| TME28LTL28B.1 | 36x2 | 36 | 30,5 | 45 | 38 | 28 | 28 | 250 | 3626 | |
| TME35LTL35B.1 | 45x2 | 41 | 34,5 | 51 | 45 | 35 | 35 | 250 | 3626 | |
| TME42LTL42B.1 | 52x2 | 50 | 40 | 56 | 51 | 42 | 42 | 250 | 3626 | |
| TME06STS06B.1 | 14x1,5 | 12 | 16 | 27,5 | 23 | 6 | 6 | 800 | 11603 | |
| TME08STS08B.1 | 16x1,5 | 14 | 17 | 27,5 | 24 | 8 | 8 | 800 | 11603 | |
| TME10STS10B.1 | 18x1,5 | 17 | 17,5 | 30 | 25 | 10 | 10 | 800 | 11603 | |
| TME12STS12B.1 | 20x1,5 | 17 | 21,5 | 31 | 29 | 12 | 12 | 630 | 9137 | |
| TME14STS14B.1 | 22x1,5 | 19 | 22 | 35 | 30 | 14 | 14 | 630 | 9137 | |
| TME16STS16B.1 | 24x1,5 | 24 | 24,5 | 38 | 33 | 16 | 16 | 630 | 9137 | |
| TME20STS20B.1 | 30x2 | 27 | 26,5 | 45 | 37 | 20 | 20 | 420 | 6091 | |
| TME25STS25B.1 | 36x2 | 36 | 30 | 53 | 42 | 25 | 25 | 420 | 6091 | |
| TME30STS30B.1 | 42x2 | 41 | 35,5 | 57 | 49 | 30 | 30 | 420 | 6091 | |
| TME38STS38B.1 | 52x2 | 50 | 41 | 63 | 57 | 38 | 38 | 420 | 6091 |
